Description

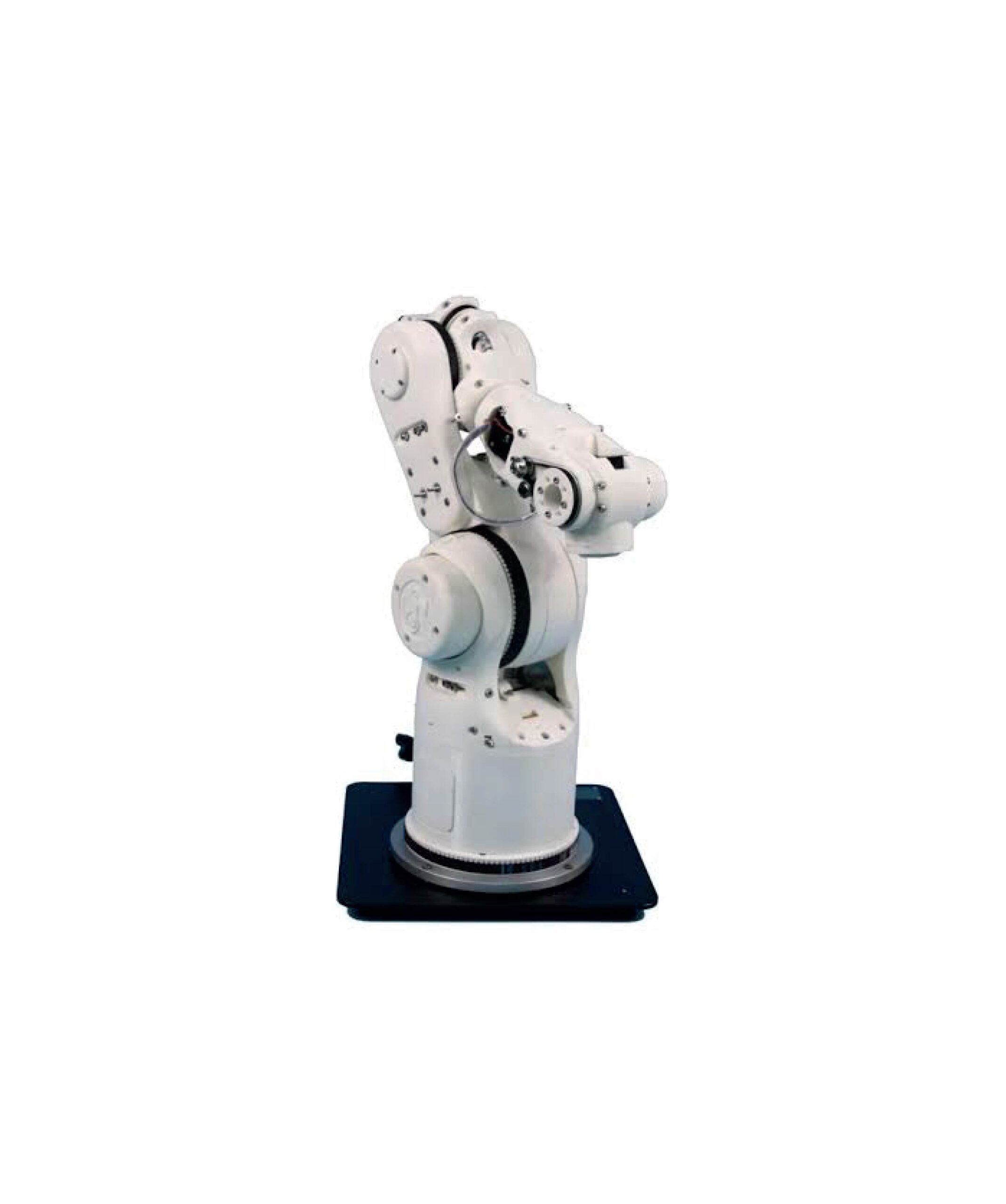

6 Axis Robot Training System
Technical Specification :
Voltage: 220V/110V
Power Supply: 360W
Body Weight: Min. 15KG
Controller: Microcontroller
Body Shell Material: Plastic (PLA, 3D Printed)
Installation Method: Desktop
Controller Box Size: Min. 320mm x 320mm x 140mm
Travel and Movement:
Vertical Travel: Min. 792.9mm
Horizontal Travel: Min. 954.4mm
Maximum Working Radius: 482.3mm
Specified Load: 1KG or higher
Repeat Accuracy: ±0.5mm or better
Axis Movement Range:
1st Axis: ±180°
2nd Axis: ±120°
3rd Axis: ±130°
4th Axis: ±180°
5th Axis: ±165°
6th Axis: ±180°
Performance:
Maximum Speed: 200mm/s
Machine Structure:
Structure Type: In series
Number of Axes: 6 Axis
Speed Reducer: Timing belt deceleration
Motor: Stepper motor
Accessories :
Control software
Controller Box
User manual
USB Cable
Others :
Installation, Testing, and Training.
Warranty: 01(One) Year
Origin: China.
Manufacturing: Assemble in Bangladesh.
