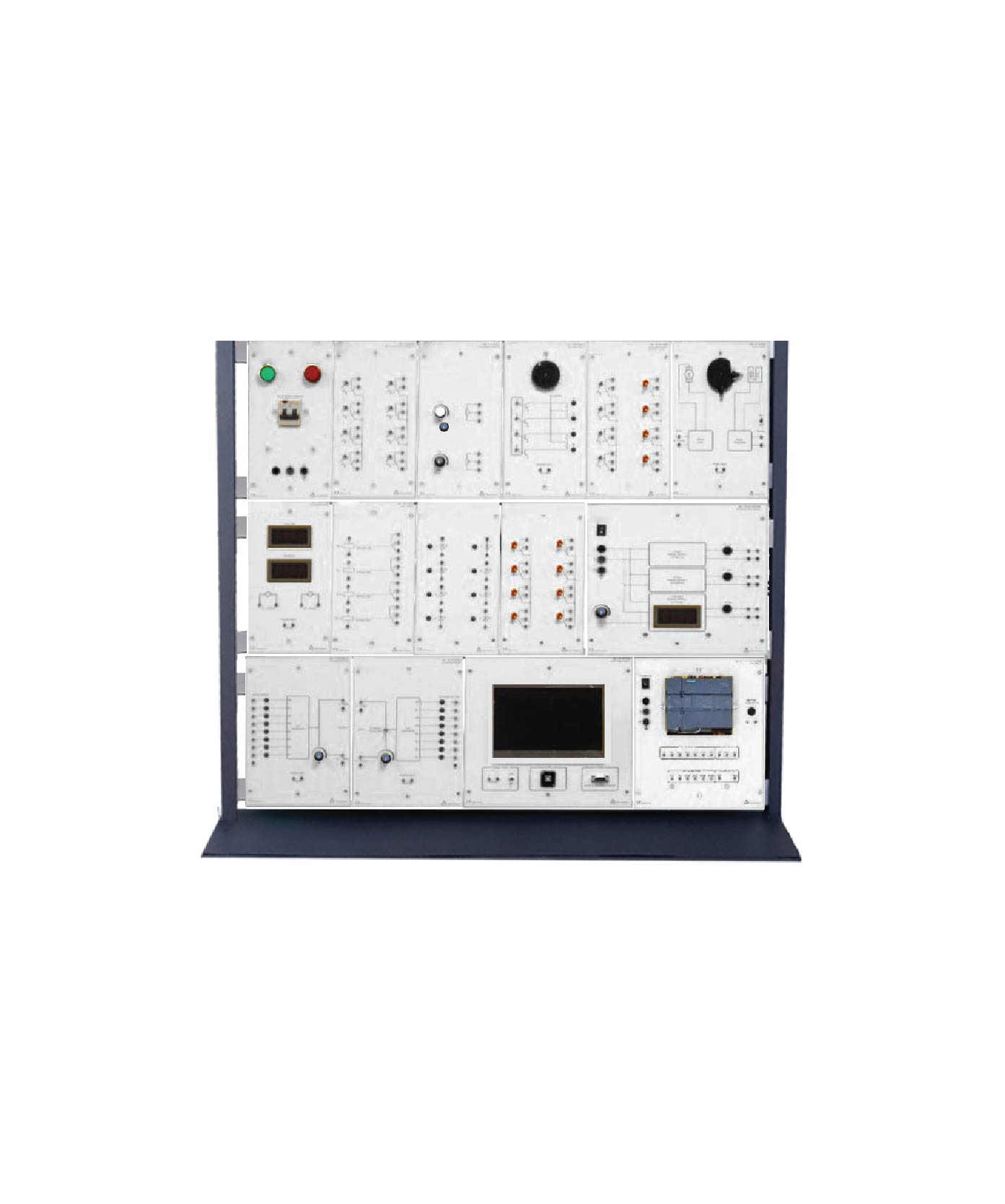

Advance PLC Trainer

Features :

• Portable PLC training kit with Siemens PLC unit
  Motor control (forward/reverse rotation) and
  sensor application control experiments
• With SIMATIC PLC programming software package
• Provides both AC and DC power for experiments
• Power cut-off function for safety

Technical Specifications :

• PLC Unit

1. Input voltage: 24V DC
2. I/O terminal: Input 14 points / Output 10 points
3. Analog input: 2 or higher channels
4. Bit processing speed: 0.1
5. Word and error processing speed: 12
6. Interface port: Ethernet / Profi-Net port
7. Working memory: 50KB
8. Load memory: 2MB
9. Retentive memory: 2MB

• AC 220V Power Output :

1. Power cut-off safety function for overload and short circuit
2. Alarm lamp and reset switch (in case of a power cut-off event)
3. Output safety terminal: 2 set

• DC 24V Power Output :

1. Equipped with a power switch (with an internal lamp)
2. Power cut-off safety function for overload and short circuit
3. Alarm lamp and reset switch (in case of a power cut-off event)
4. 4mm banana output terminal: +/- 4 se

• Input Signal Block :

1. Non-lock type push switch: 7ea
2. Lock-type push switch: 1ea
3. 8 points / 1COM

• Digital I/O Connection Banana Jack :

1. Input: 14 points (7 points / 1COM)
2. Output: 10 points (5 points / 1COM)

• BCD Control Block :

1. Digital switch unit for input signal
2. Signal processing: BCD signal output
3. Input indication: 00 ~ 99
4. Contact point: 8 points (4 points / 1COM)

• Segment Display Output Block :

1. Signal processing: BCD signal
2. Output indication: 00 ~ 99
3. Output method: 2-digit LED display (with a
   protective window)
4. Contact point: COMMON insulated 8 points
5. Power input terminal: DC 24V

• Sensor & Motor Device :

1. Proximity sensor: 1ea
2. Photo sensor: 1ea
3. DC deceleration motor: 1ea
4. With a rotary disc for sensor detection

• 10 AC Inlet (Built-in Fuse Type) :

1. Input voltage: AC 220V, 50/60Hz
2. Equipped with a power switch (with an internal lamp)

Accessories:

• User Manual: 1 Nos
• With Standard Accessories.
• 4mm Safety Socket

Others:

• Parts Origin: China, Taiwan or Japan
• Manufacturing: Assemble in Bangladesh
• Installation
• Training
