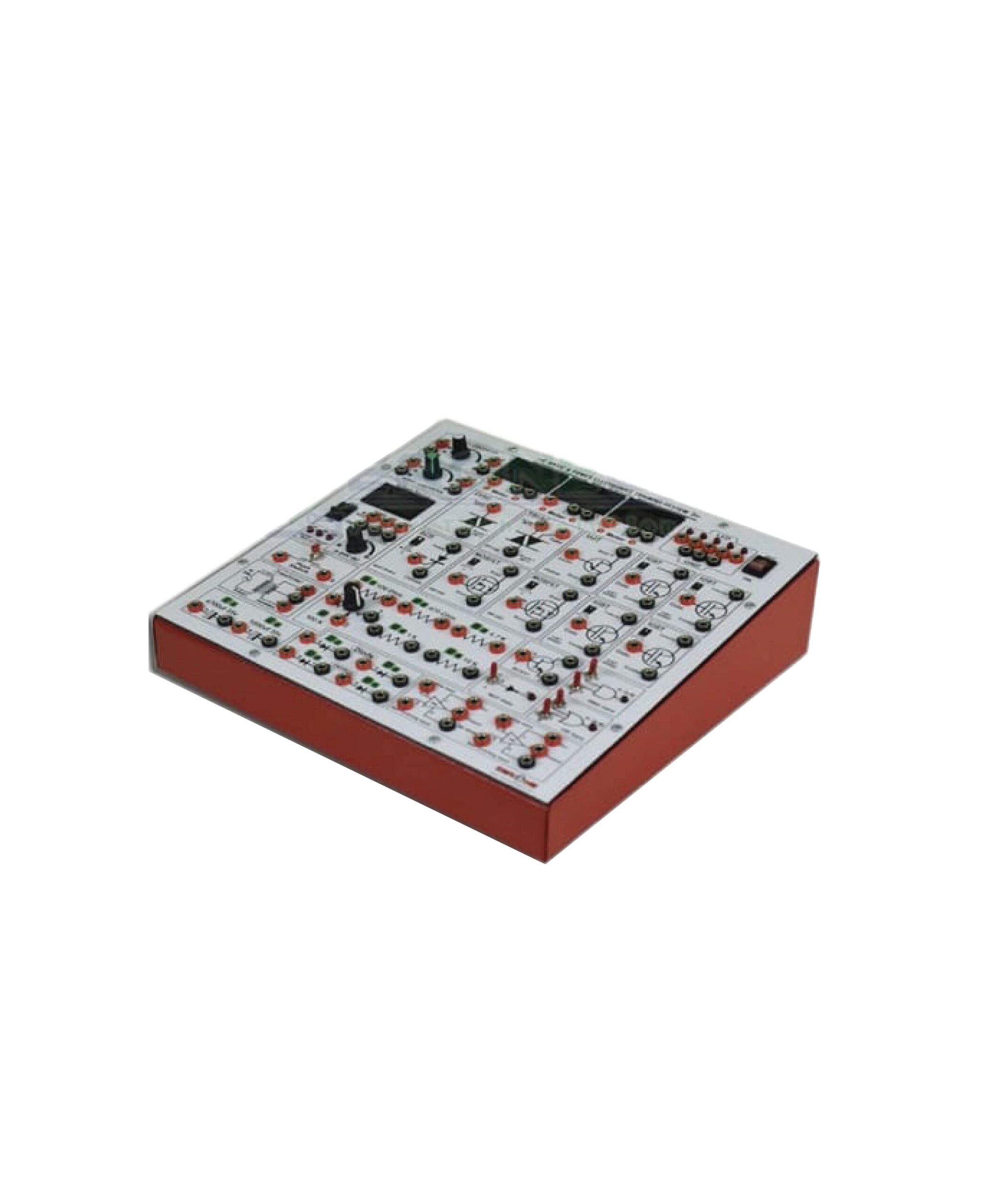

BASIC AND POWER ELECTRONICS LAB TRAINER

Model: FT – ED145

The BASIC AND POWER ELECTRONICS LAB TRAINER is a practical training system designed for performing experiments on voltage-current (VI) characteristics of key electronic and power devices such as P-N junction diode, SCR, MOSFET, and IGBT. It is equipped with 6 digital volt and amp meters, resistance load, two variable power supplies, and connection wires to ensure easy and smooth connectivity. The trainer allows more than 5 practical experiments to be conducted together, making it suitable for electronics and power electronics laboratory applications.

Description
Reviews (0)

Description

BASIC AND POWER ELECTRONICS LAB TRAINER

Technical Specification :

Capable of showing VI Characteristics (Voltage-Current Characteristics) of:
• P-N junction Diode
• SCR (Silicon Controlled Rectifier)
• MOSFET (Metal Oxide Semiconductor Field Effect Transistor)
• IGBT (Insulated Gate Bipolar Transistor)

Included Components / Features:
• 6 Digital Volt and Amp. Meters
• Resistance Load
• 2 variable Power Supply
• Connection Wire
• Easy and Smooth Connectivity
• More than 5 practicals can be done together

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
