Description

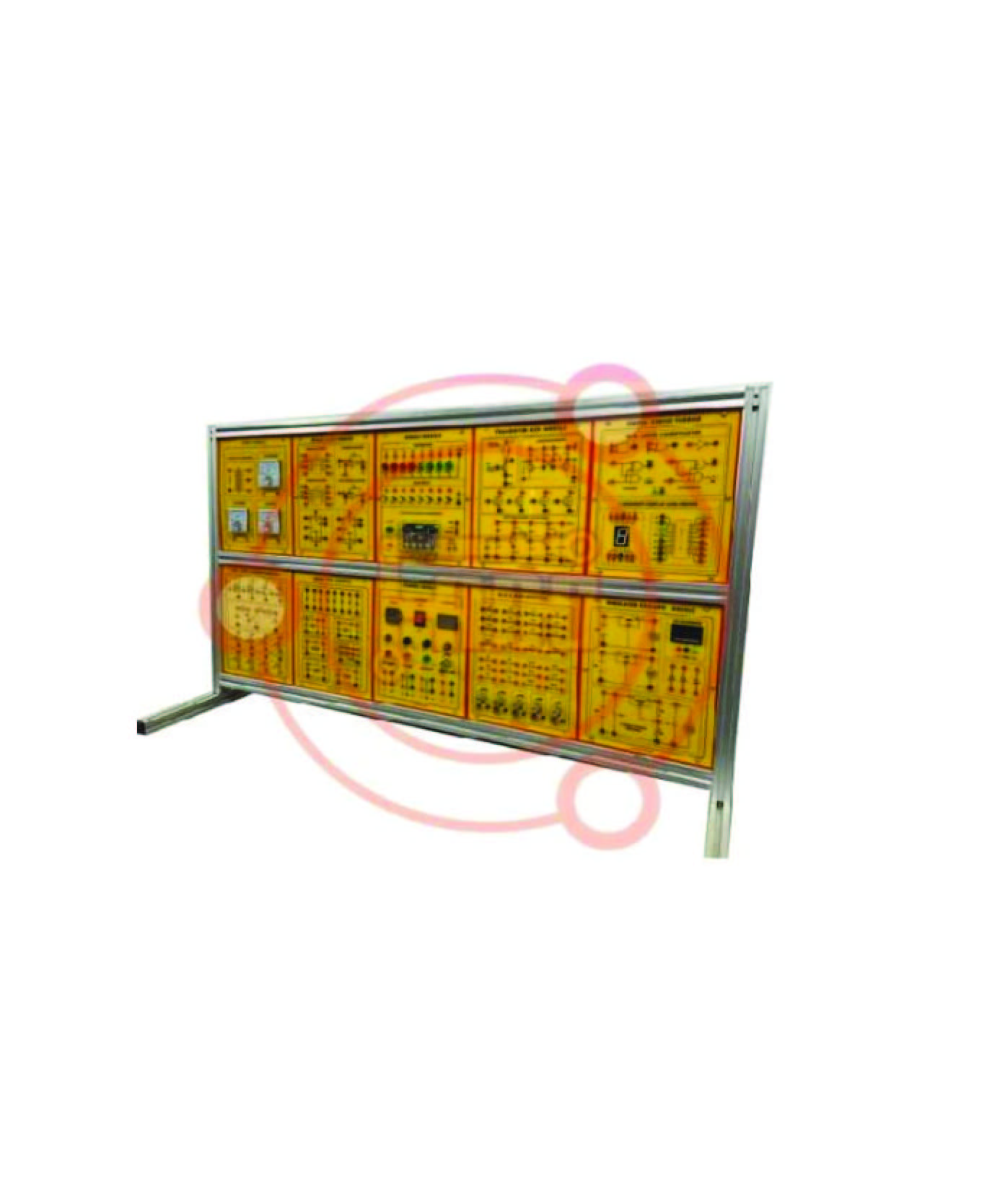

Basic Electrical Training System
Technical Specification :
General switch, fuse and signaling lamp
Safety single-phase transformer 115-230V /
6-12-24 VAC-1A
Fuse-holder with fuses type 6×30-1A
Moving iron ammeter with range: 0.5-1A
1 Moving iron voltmeter with range: 25 V
10 Resistors of different values (2Ω, 4Ω, 8Ω, 16
Ω, 31.5Ω, 63Ω, 250Ω, 500Ω, 1000Ω, 2000Ω)
1 Linear rheostat 100Ω / 25W
4 Diodes 6A–100V
2 Lamp-holder with 24-V signaling lamp
1 24-Vac buzzer
1 Electrolytic capacitor: 100μF/25Vdc
2 Electrolytic capacitors: 500μF/25Vdc
2 Inductances 60 mH 0.5 A
2 Pushbuttons for general use
2 Shunters for general use
1 Inverter for general use
1 Relay, 2 exchange contacts, 24 Vac coil
1 Set of 25mm cables with 4-mm plug
Dimensions (W x H x D): 258 x 95 x 334 mm
Weight: 4.5 kg
AC voltage and current measurements
Diode insertion with different configurations:
Half-wave rectifier
Full-wave rectifier
Bridge rectifier
Voltage doublers
DC voltage and current measurements
Insertion of resistances with different configurations:
Resistance measurements
Checking Ohm’s law
Series resistors
Voltage divider
Parallel resistors
Current divider
Series and parallel resistors
Maximum power transfer
Kirchhoff’s principle
Superposition principle
Thevenin’s theorem
Power measurements:
DC power measurement
Joule’s law
AC power
Insertion of capacitors with different configurations:
Charge and discharge of a DC capacitor
Series DC capacitors
Parallel DC capacitors
Electromagnetic phenomena:
Inductance of a coil
Coil in series
Coils in parallel
Ohmic/inductive/capacitive circuits
RC circuit
RL circuit
Series resonant circuit
Parallel resonant circuit
Q-factor
Coupled circuits
Attenuators
Transformers:
Leveling filters
Inductive circuit
Capacitive input
LC filter
Lighting setups:
Lamp with switch
Multiple lamps with shunters
Lamps with inverter
Lamps with relay
Lighting of a file room
Lighting of one or more lamps with relay
Accessories :
Connecting Wire
User Manual
Standard Accessories
Others :
Origin Parts : China, Taiwan, Japan.
Manufacturing in Bangladesh.
Warranty: 01 year.
Installation, Testing.
Training.
