Description

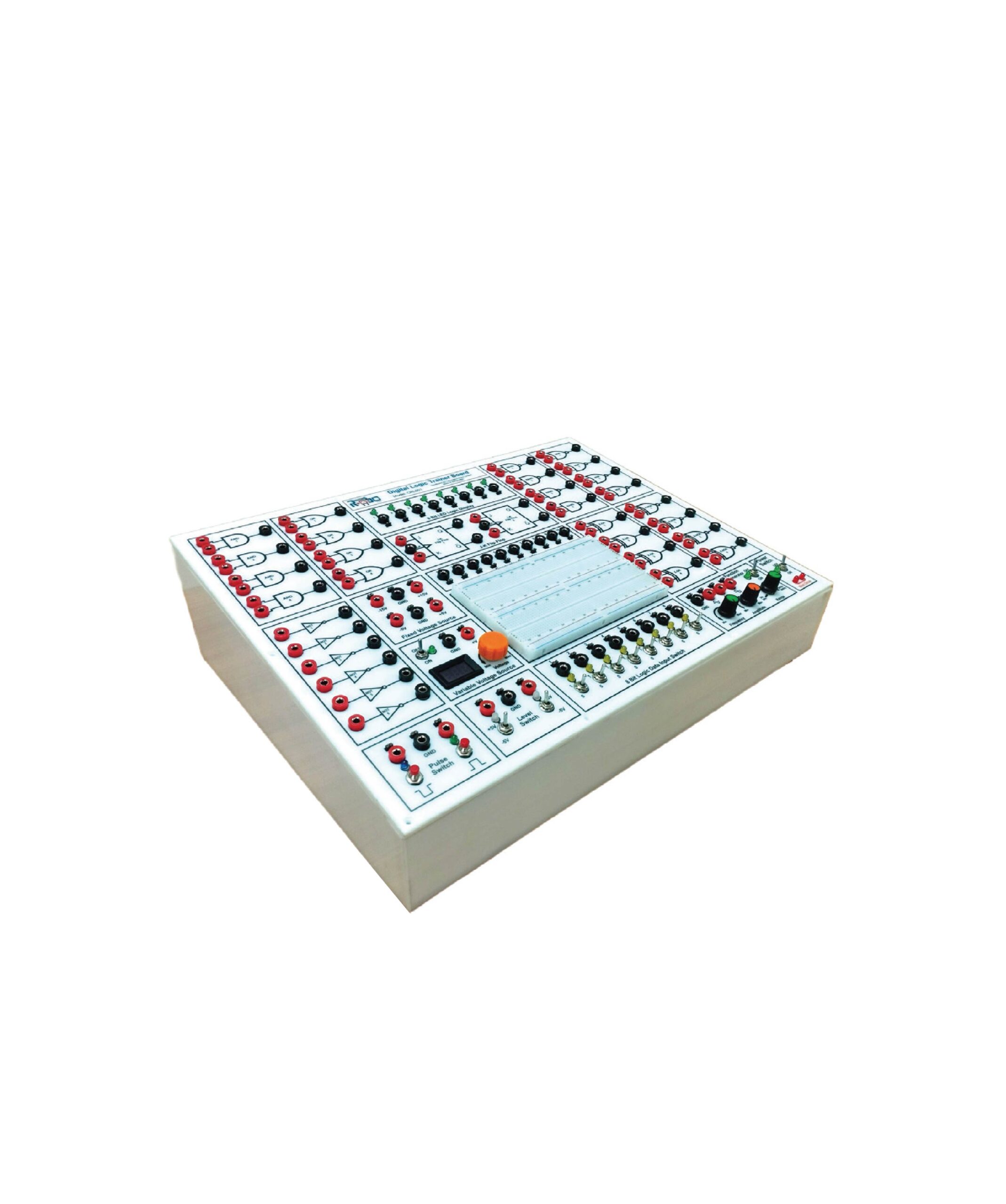

Digital Logic Trainer Board

Technical Specification (Category – 1)

2-Input AND Gate.
2-Input OR Gate And NOT Gate.
2-Input NAND Gate.
2-Input NOR Gate.
2-Input X-OR Gate.
2-Input X- NOR Gate.
J-K Flip Flop
8-bit Logic Input Switch
8-bit Logic Output Display
10 Connector Converter
Dual Breadboard
Fixed Voltage Source
+5V, GND, -5V
+15V, GND, -15V Variable
Voltage Source with Display: 3.3v to 30V
Pulse switch with Indicator
Positive Pulse
Negative Pulse
Voltage Level Switch with Indicator
Positive Voltage Level
Negative Voltage Level
Signal Generator (Range, Frequency & Amplitude Control)
Sine Wave ,Triangular Wave, Square Wave.

Technical Specification (Category – 2)
•AND gate
•OR gate
•NOT gate
•NAND gate
•NOR gate
•NOR gate
•XNOR gate
•JK Flip Flop

Accessories :
Connecting Wire
User Manual
Standard Accessories

Others :
Origin Parts : China, Taiwan, Japan.
Manufacturing in Bangladesh.
Warranty: 01 year.
Installation, Testing.
Training.
