Description

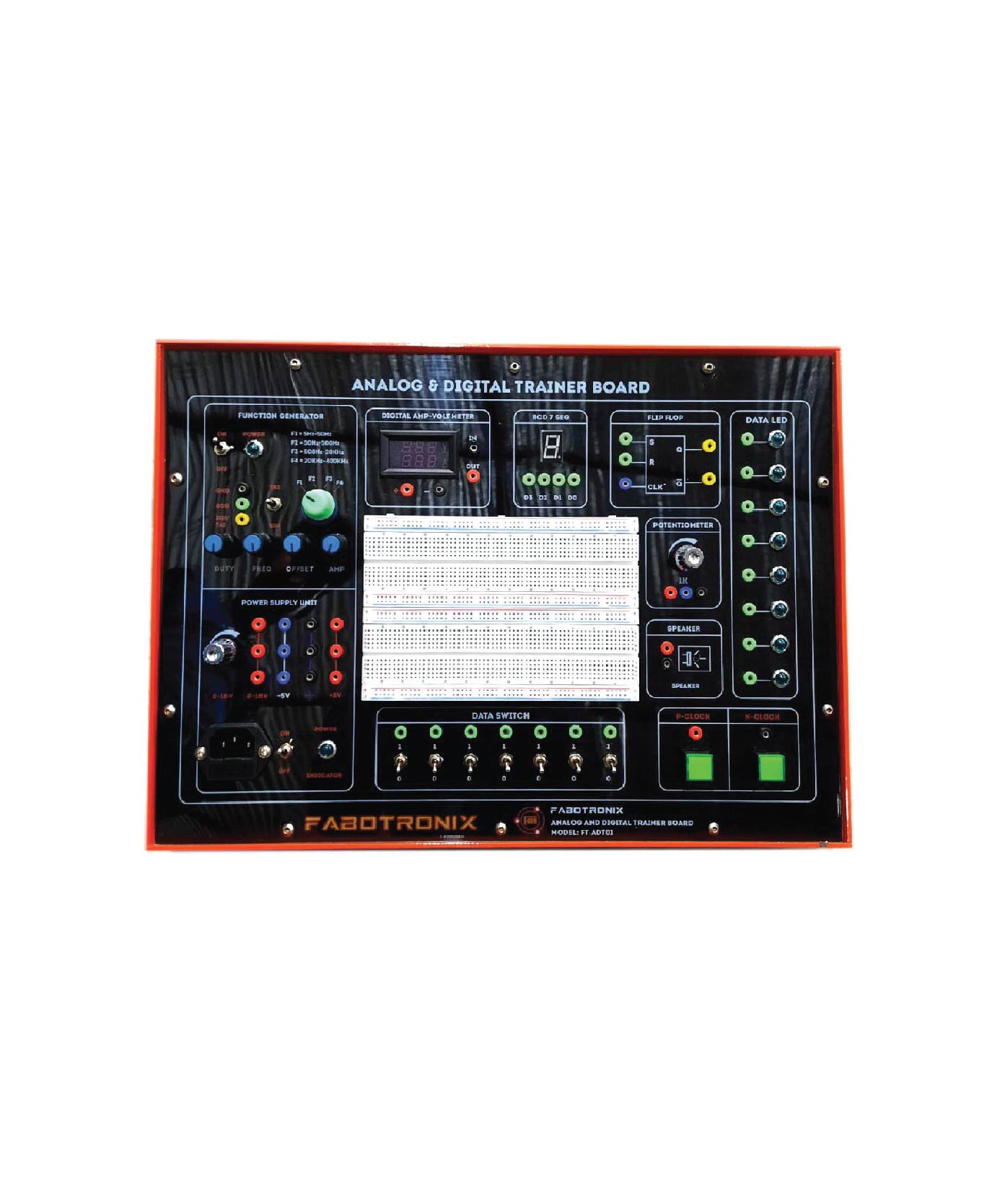

Digital Trainer Board

Technical Specifications :

• High level & high quality digital analog trainer Combines al essential function of analog and digital
  experiment With removable breadboard, DC power supply, function generator, two pulse switches,
  2 1/4-inch 8 ohm 0.25W speaker and etc.
• Solder less Breadboard: Interconnected with 2820 tie points nickel plated contact, fitted al DIP
  sizes and al components with lead and solid wire AWG # 22-30 (0.3-0.8mm). It can be changed
  and replaced for different purpose and can be connected with demonstration panel.

1. DC Power Supply :

1. Fixed DC output: +5V, 1 AMP
2. Fixed DC output: -5V, 1 AMP
3. Variable DC output: 0V to +15V, 1 AMP

2. Potentiometers: :

1. Variable resistor VR1 = 1k
2. Variable resistor VR2 = 100k

3. Function Generator :

1. Frequency Ranges:
2. 1Hz ~ 10Hz
3. 10Hz ~ 100Hz
4. 100Hz ~ 1kHz
5. 1kHz ~ 10kHz
6. 10kHz ~ 100kHz

4. Amplitude Outputs:

1. Sine wave: 0 ~ 10 Vpp variable
2. Triangle wave: 0 ~ 10 Vpp variable
3. Square wave: 0 ~ 10 Vpp variable
4. TTL mode output: 4 Vpp

5. Control & Display Components:

1. Sixteen Bits Data Switches: 16 pcs toggle switches and
   corresponding output points
2. Two Pulse Switches: 2 pcs pushbuttons with de-bouncer
3. Speaker: 2-1/2-inch diameter, 8 ohm / 0.5W (used for load)
4. Four Channel Adaptor
5. Two-digit 7-segment LED display
6. Sixteen Bits LED Display: 16 LEDs separate for input
   terminals Universal connector fixed holder on the panel
   (for various universal connectors)

6. Power Source :

1. 220V AC ±10%, 50Hz

Accessories:

• User Manual: 1 Nos
• With Standard Accessories.
• 4mm Safety Socket

Others:

• Parts Origin: China, Taiwan or Japan
• Manufacturing: Assemble in Bangladesh
• Installation
• Training
