Description

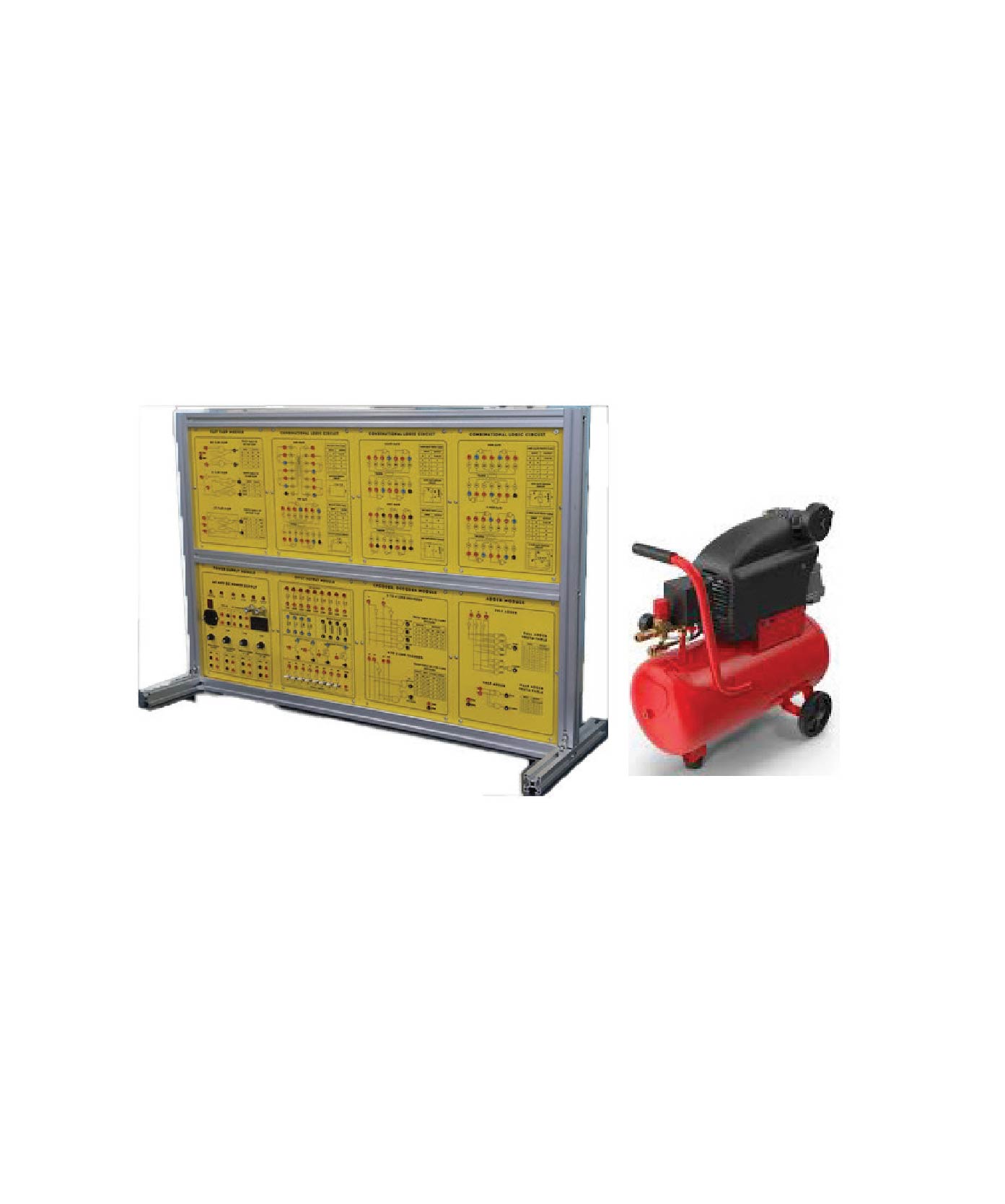

Electricity Module Package for Smart Lab

Technical Specification :

BASIC ELECTRICITY PACKAGE
1) RLC CIRCUIT
Ohm’s law
Kirchhoff’s law
Superposition theorem
Norton’s theorem
Thevenin’s theorem
AC/DC voltage measurement
AC/DC current measurement
AC/DC power measurement
AC circuit (RC/RL/RLC)
DC circuit (RC) and transient phenomenon
Series-parallel combination logic

2) ELECTROMAGNET
Basic principles of electromagnet
Characteristic of magnetic field
Characteristics of magnetic system Switch and relay practices using a magnet

3) ELECTROMAGNETIC FIELD
Principles of electromagnetic field
Lenz Law
Faraday Law
Strength of the magnetic field
Drawing magnetic lines

4) CHARACTERISTICS OF MAGNETIC FIELD
Electromagnetism
Ampere’s Law
Direction of magnetic field
Flow of current

5) FLEMING’S LAW
Motor and generator Fleming’s Law

6) CHARACTERISTICS OF COIL
Magnetic induction
Mutual induction
Magnetic flux detection

7) BASIC SEMICONDUCTOR CIRCUIT
Characteristics of Diode and Zener diode
Rectifier circuit
Filter circuit
FET/SCR/UJT characteristics
Principles of LED

8) BASIC ELECTRICAL CIRCUIT
Amplifier Multistage amplifier
Cascade amplifier
Constant voltage circuit
Relay and touch control switch

9)ELECTROACOUSTIC AMPLIFIER CIRCUIT
Push-pull amplifier
Wheatstone bridge & Sound control circuit

10) CHARACTERISTICS OF ELECTRICAL
elements CDS characteristics
Light control switch
Principles of thermistor
Temperature control circuit

11) OSCILLATOR CIRCUIT
Blocking generator
Electronic bird sound generator
Astable multivibrator
LC resonant circuit
LED flashing circuit

PC-Based DAQ Training Kit:
Modes:
User selection for REMOTE or LOCAL modes
Features:
Schematic diagrams on the panel for ADC and DAC processes
A/D converter for collecting and analyzing analog data via a PC
Generates five types of waveforms using the D/A converter
PC-based D/A input control and I/O monitoring
EXPERIMENTAL CONTENTS:
Hardware and firmware practices
Visual C++ programming practices (Windows-based)
Communication protocol
Related programming tasks
A/D Converter Specifications:
Resolution: 8 bits
Conversion speed: 100 μs
Analog input range: 0—12.75 V
Digital output level: 5V ± 0.2V TTL
Full-scale error: ±1 LSB
Display: 4-digit 7-segment
D/A Converter Specifications:
Resolution: 8 bits
Conversion speed: 100 μs
Analog input range: 0—12.75 V
D/A chip-type: Current output
Full-scale error: ±1 LSB
Display: 4-digit 7-segment
PC Interface:
MCU: T89C51ED2
PC interface: RS-232C (38,400 bps)
STANDARD ACCESSORIES:
Lamp module: 1 piece
Photo TR module: 1 piece
CDS module: 1 piece
Connection cables (4 mm): 4 pieces
Serial cable (9-pin F-F): 1 piece
DAQ software program CD: 1 piece
User’s guide manual: 1 piece
Climate Control Unit Specification:
Basic Features:
Function: Cooling
BTU/hr: 18,000
Rated Voltage: AC 230V, 50 Hz
Rated Input Power (W): 1240 (Approx.)
Rated Current (A): 5.45 (Approx.)
Cooling Capacity (W): Minimum 5275
EER: 4.25
Compressor Type: Rotary (Inverter)
Refrigerant Type: R-32

Refrigerant Amount (Kg): 0.61
Operating Range: 20°C to 52°C
Evaporator Fin Type: Louvered Fin
Condenser Type: Micro Channel Condenser
Condenser Fin Type: Wave Fin
Pipe Length: Minimum 10m
Operations:
Turbo Mode (Maximum Cooling): Yes
ECO Mode (Power Saving): Yes
Dry Mode: Yes
Fan Mode: Yes
Auto Operation: Yes
Auto Restart: Yes
Comfort Cooling: Yes
Air Plasma: Yes
Kids Mode: Yes
Mold Proof: Yes
Hidden Display: Yes
Frost Clean: Yes
Speed Setting: Yes (Auto, High, Medium, Low)
Timer: Yes; Sleep: Yes
Remote & Air Deflection:
Display Type: LCD
Operation/Control: Via IR (Infrared Ray)
Child Lock: Yes
Temperature Unit Change: Yes (16°C to 31°C)
Auto UP-Down Swing: Yes
Auto Left-Right Swing: Yes
Dimensions & Weights:
Indoor Dimensions (mm): [L x W x H] Unit: 940 x 320 x 240 Approx.
Outdoor Dimensions (mm): [L x W x H] Unit: 940 x 370 x 700 Approx.
Net Weight (Indoor) (kg): 12.5 ± 1
Net Weight (Outdoor) (kg): 37 ± 3
Compressor Guarantee: Minimum 10 Years
Spare Parts Support: Minimum 3 Years

Accessories:
Connecting Wire: 1 set
User Manual: 1 Nos
Standard Accessoriec

Others
Country of Origin: China
Manufacturing: Assemble in Bangladesh
Training
Warranty: 1 Year
