Description

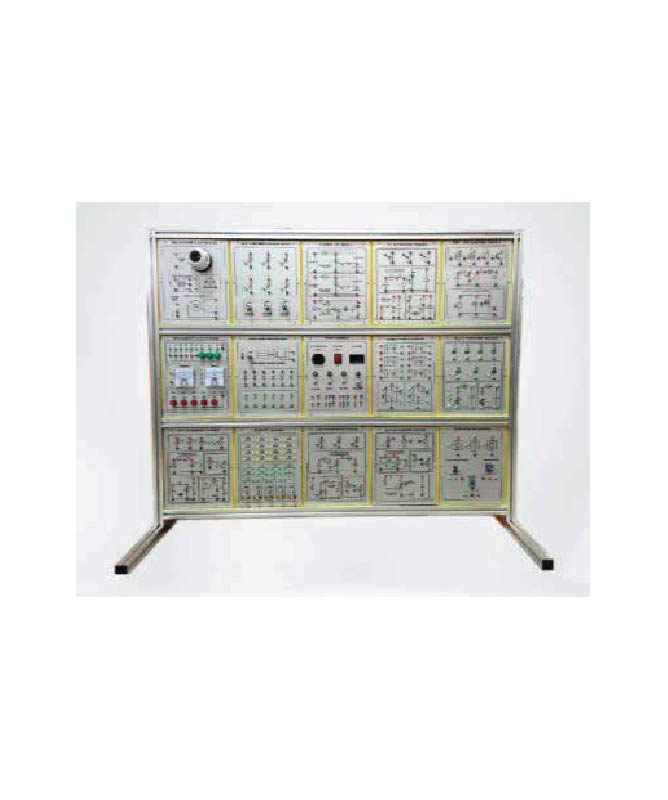

Electronic Circuits Trainer with Nine Module and Function Generator
& DC POWER SUPPLY

Features:

Module-1 : Diode Circuit:

• 1. Half-wave and Full wave Rectifiers
• 2. Bridge Full wave Rectifier
• 3. Capacitive. Filter Circuits
• 4. Clamping Circuit
• 5. Half-wave Voltage Quadrupler
• 6. Limiting Circuit

Module-2: Bipolar Junction Transistor:

• 1. Transistor Switch
• 2. DC Bias Circuit
• 3. Darlington Amplifier
• 4. Fixed Bias Common-emitter Amplifier
• 5. Self-bias Common-emitter Amplifier
• 6. Common-collector Amplifier
• 7. Common-base Amplifier
• 8. Capacitively Coupled Multistage Amplifier
• 9. Directly Coupled Multistage Amplifier

Module-3: Field Effect Transistor (FET) Circuits:

• 1. MOSFET DC Bias Circuit
• 2. MOSFET Common-source Amplifier
• 3. MOSFET Common-drain Amplifier
• 4. MOSFET Common-gate Amplifier
• 5. MOSFET Capacitively Coupled Multistage Amplifier
• 6. MOSFET Directly Coupled Multistage Amplifier
• 7. CMOS Common-source Amplifier
• 8. CMOS Cascode Amplifier
• 9. CMOS Capacitively Coupled Multistage Amplifier

Module 4: Operational Amplifier Circuits:

• 1. Inverting Amplifier
• 2. Non-inverting Amplifier
• 3. Voltage Follower
• 4. Miller Integrator
• 5. Differentiator
• 6. Comparator
• 7. Weighted Summer
• 8. Subtractor
• 9. Differential Amplifier
• 10. Instrumentation Amplifier
• 11. Basic Multiplier

Module 5: Practical Waveform Generator Circuits:

• 1. RC Phase Shift Oscillator
• 2. Wien Bridge Oscillator
• 3. Hartley Oscillator and Colpitts Oscillator
• 4. Astable Multivibrator and Monostable Multivibrator
• 5. Triangular Waveform Oscillator
• 6. Voltage Controlled Oscillator
• 7. Crystal Oscillator

Module 6: Digital and Timing Circuits:

• 1. 8-bit BCD Adder
• 2. 8-bit BCD Subtractor
• 3. 555 Tone Generator
• 4. PWM Light Intensity Controlled Circuit
• 5. BCD Digit Display Circuit

Module 7: Junction Field Effect Transistor (JFET) Circuits:

• 1. JFET DC Bias Circuit
• 2. JFET Common-source Amplifier
• 3. JFET Common-drain Amplifier
• 4. JFET Common-gate Amplifier
• 5. JFET Capacitively Coupled Multistage Amplifier
• 6. JFET and MOSFET Directly Coupled Multistage Amplifier

Module 8: Power Amplifier Circuits:

• 1. Class A Power Amplifier
• 2. Class B Power Amplifier
• 3. Class AB Power Amplifier
• 4. Class C Power Amplifier
• 5. Single-ended Push-pull Power Amplifier

Module 9: Regulator Circuits:

• 1. 7805 Regulator7
• 2. 809 Regulator
• 3. 317 Current Source
• 4. Zener Diode Regulator
• 5. BJT Regulator
• 6. 317 Variable Voltage and Current Regulator

Function Generator & DC Power Supply:

• 1. Waveforms: Sine, Triangle, Square, TTL Pulse
• 2. Amplitude: >10 Vpp
• 3. Impedance: 50Ω ±10%
• 4. Duty Control: 30% to 60%
• 5. Display: 6-digit LED

Frequency Range :

•    1. 10 Hz to 100 kHz (4 Ranges)
•    2. 100 Hz to 1 MHz (4 Ranges)
• 1. Constant Voltage Output: ±5V, ±12V
• 2. Variable Voltage Output: 0V to ±15V
• 3. Power Source: 220–230V AC, 50Hz, 1 Phase

Accessories:

• User Manual: 1 Nos
• With Standard Accessories.
• 4mm Safety Socket

Others:

• Parts Origin: China, Taiwan or Japan
• Manufacturing: Assemble in Bangladesh
• Installation
• Training
