Description

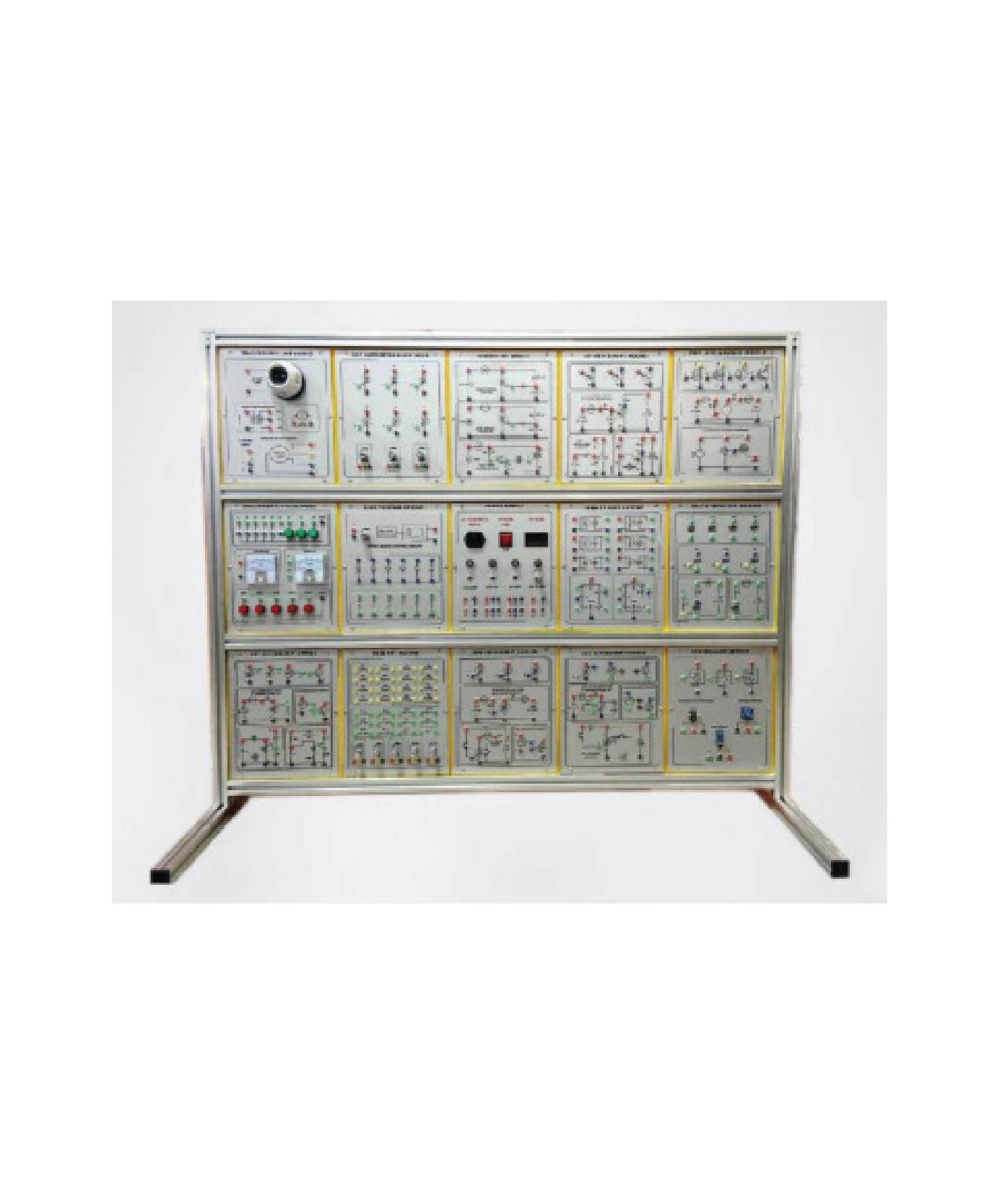

Electronic Module Package for Smart Trainer

Technical Specification :

DC Circuit Ohm: Law; Kitchhoff’s Law; Series-parallel circuit; Galvanometer;
Wheatstone Bridge
Measurement DC voltmeter: DC ammeter; Ohm meter; V, A, R indicator
AC Circuit Capethaneo circuit; Indoctaneo circuit; RC/R1. circuit; LC
resonance circuit (series-parallel)
Transformer Auto transformer; Transformer load; Transformer turn ratio;
Input voltage and output voltage
Semiconductor-1 Characteristics of diode, Zener diode, NPN transistor, PNP transistor
Semiconductor-2 J-HET characteristics, MOS-HET characteristics, SCR
characteristics, TRIAC characteristics
Transistor amplifier, Common emitter amplifier, Complementary amplifier,
Darlington amplifier, Amplifier Blasing
OP AMP Differential amplifier, non-inverting amplifier, Inverting amplifier,
OP AMP offset
Active filter Band pass filter, Law pass filter, High pass filter
Regulated power supply Voltage regulator, Bridge rectifier, Variable
V-regulator (OP AMP), Variable V. regulator (Transistor)
Oscillator Crystal oscillator, Colphia oscillator, Hartley oscillator, Wien
bridge oscillator, Phase shift oscillator
Pulse circuit: Clipper circuit, Schmitt trigger, Blstable multi-thrater,
Monostable multivibrater
Digital logic: Diode logic, AND gate (CMOS), OR/XOR gate (CMOS),
Inverter (CMOS)
Sequential logic: JK flip-flop (TTL), RS flip-flop (TTL) Counter (TTL),
Shift register (TTL)
Combination logic: Decoder (TTL), Encoder (TTL), Half adder/Full
adder (TTL), Multiplexer/Dc-multiplexer (CMOS)
Signal converter: A/D converter, D/A converter, F/V converter, V/F
converter Machine Holder Quantity: 2
MATERIAL:
Compressed Wood panels with laminated melamine surface
Dimension/invariant: 2449 X 470 X 750 mm
Top surface around: 16 mm laminated board 16 mm top visual with 1mm
PVC leg stopper for floor protection
Paint: Mild steel-pair protected with powder coating heat paint
PVC edge shields with hot red line to protect moisture gaining
Phosphatide and Oven baked powder paint finish for anti-rast and longevity
Anti-insects chemicals added to make the board termite-proofedging
Color: Black, White, Wooden and etc
Surface solid be second green
Buss: Cold rolled Mild Steel tubular frame or Made with heavy-duty mild steel

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
Training
