Description

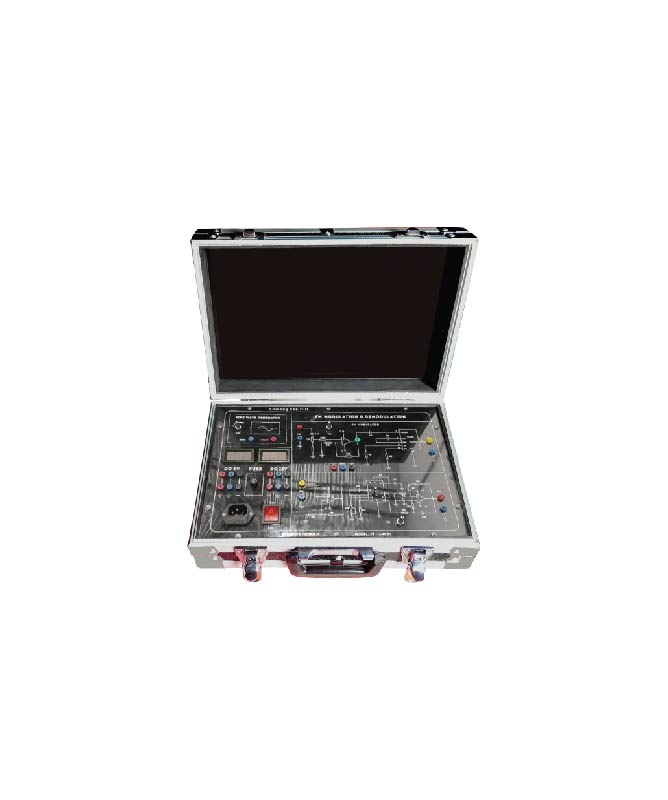

FDM Transmitter Receiver Trainer

Technical Specification:

• The FDM Transmitter Receiver Trainer will consist of the following one module with Function Generator and DC
  Power Supply

1. FDM Multiplexer & Demultiplexer Module :

FDM Signal Generator:

• Carrier Signal: 500 kHz ~ 1.5 MHz
• Audio Signal: 500 Hz ~ 1.5 kHz

2. DSB-SC Modulated Signal Generator: :

• Carrier Signal: 500 kHz ~ 1.5 MHz
• Audio Signal: 500 Hz ~ 1.5 kHz

3. FDM Multiplexer :

• Modulation Type: DSB-SC Signal
• Transmission Bandwidth: 2 MHz

4. Function Generator & DC Power Supply Module:

• Waveforms: Sine, Triangle, Square, TTL
• Pulse Amplitude: >10 Vpp
• Impedance: 50 ±10%
• Duty Control: 30% ~ 60%
• Display: 6-Digit LED Display
• Frequency Range: 10Hz to 100 kHz (4 Ranges), 100Hz to 1 MHz (4 Ranges)
• Frequency Control: Separative Coarse and Fine Tuning
• Constant Voltage Output: ±5V, ±12V
• Variable Voltage Output: 0V ~ ±15V
• Power Source: 220V AC ±10%, 50Hz

Accessories:

• User Manual: 1 Nos
• With Standard Accessories.
• 4mm Safety Socket

Others:

• Parts Origin: China, Taiwan or Japan
• Manufacturing: Assemble in Bangladesh
• Installation
• Training
