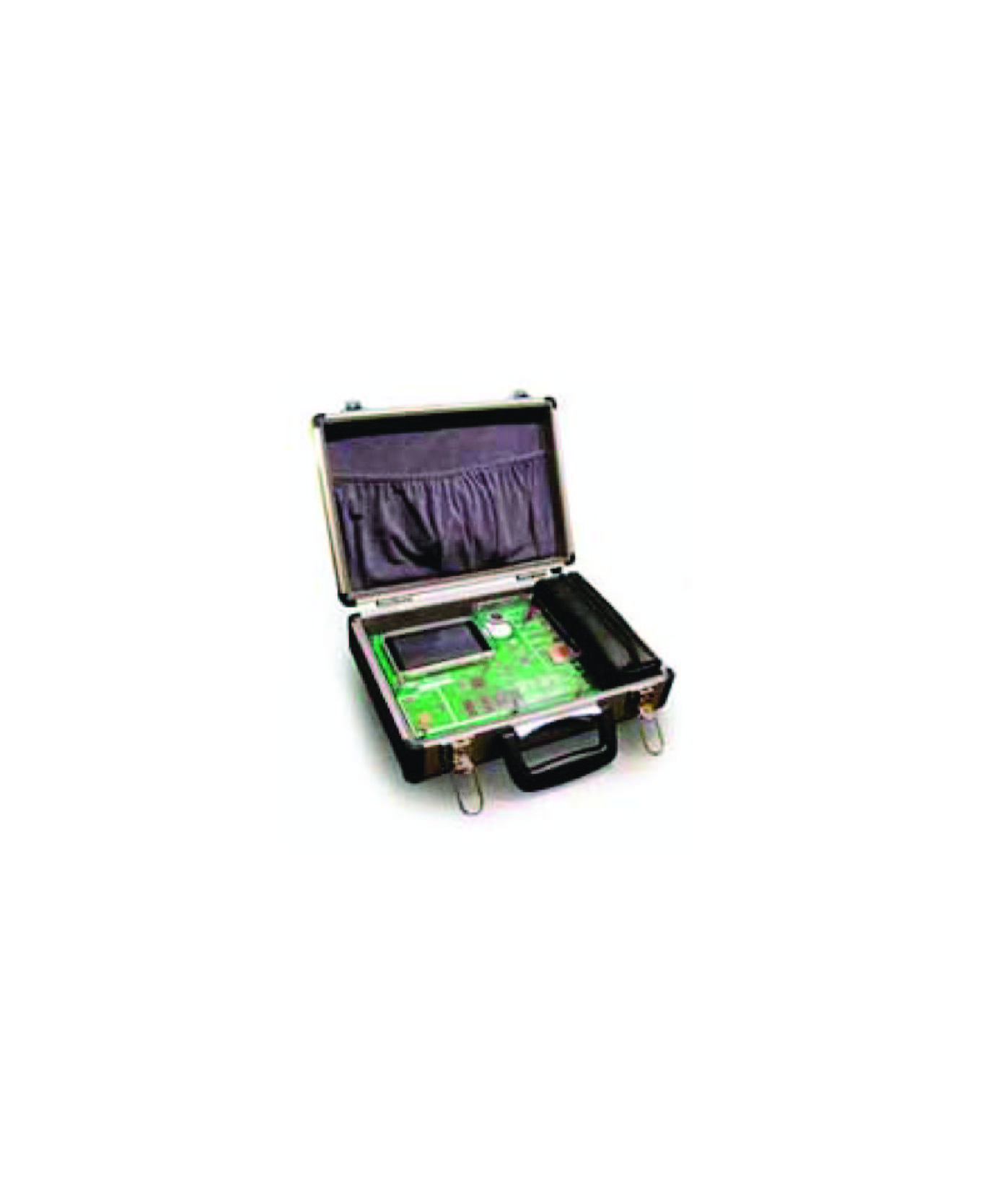

GPS Technology Training System
Technical Specification :
GPS technology widely being used for PDA, Smart phone, Navigation system., etc.
GPS training system enabling the user to acquire the skills of GPS technology through the practice of
Satellite Position, GMT Time, Latitude, longitude, Speed, PDOP, HDOP, VDOP, TIFF Time, etc
using GPS Platform and Protocol.
Software training on GPS protocol, Analysis of GPS on Window based OS. Functions:
Understanding concept of GPS
Measurement of Latitude & Longitude
Analysis of NMEA-0183 protocol
Study of DOP (PDOP, HDOP, VDOP)
Development Windows based user application
Debugging experience with serial port Application Program:
Embedded OS (Windows) on platform
GPS information viewer sample application
GPS Viewer Software for analysis GPS signal.
Data update every 1sec.
Monitoring GPS status.
NMEA 0183 Protocol Data Output (GGA, GSA, GSV, RMC)
Ublox Chipset Protocol Output
Data Reception
Satellite Position
GMT Time
Latitude, Longitude
Speed
PDOP, HDOP, VDOP
The Number of Fixed Satellite
Average Time for Fix
GPS Module Firmware Version
Graphical user interface application and source code
Serial communication with GPS module
Comport / Baud rate Setting
Simple GUI (Graphical User Interface) study
Case study of graphical display method about GPS signal
Technical Specification:
CPU: X-Z8350 core or better
Memory: Min. 2GB RAM, 32GB EMMC
Video: Min.7-inch IPS LCD Display / 1024*600 Pixels or better
Audio: Built-in Speaker
Input device: Touch Screen, 4-Button
Output: Data indication LED, Debug serial port
Power: Input Voltage: DC +5V3A (15W)
GPS features
General: Channel: 20 or higher
Frequency: L1, 1575.42MHz
CA Code: 1.023MHz Chip Rate
Accuracy: Position: 10meters CEP without SA
Velocity: 0.1meters/second without SA
Time: Imicrosecond synchronized to GPS time
Sensitivity: Tracking: -157dBm
Acquisition: -154dBm
(TTFF (Time to Fix): Hot Start: 1sec.
Warm Start: Min. 38sec.
Cold Start: Min. 42sec.
Dynamic Condition: Altitude: 1,800meters
Velocity: <51Smeters/sec.
Acceleration: 4g
Jerk: 20meters/sec3
Serial Communication Interface: USB to Serial full duplex
Baud rate: 9600bps
Protocol Message: NMEA-0183(default) or UBX(Chipset) Protocol
Embedded OS (Windows) on platform
GPS information viewer sample application
GPS Viewer Software for analysis GPS signal.
Data update every 1sec.
Monitoring GPS status.
NMEA 0183 Protocol Data Output (GGA, GSA, GSV, RMC)
UBlox Chipset Protocol Output
Data Reception
Satellite Position
GMT Time
Latitude, Longitude
Speed
PDOP, HDOP, VDOP
The Number of Fixed Satellite
Average Time for Fix
GPS Module Firmware Version
Graphical user interface application and source code
Serial communication with GPS module
Comport / Baud rate Setting
Simple GUI (Graphical User Interface) study
Case study of graphical display method about GPS signal
Software Specification:
Operating System: Microsoft Windows 10
Application compiler: Microsoft Visual C++ MSVC v143 with MFC
Development Language: C / C++
PDOP: Percent Dilution of Position.
HDOP: Horizontal Dilution of Precision
VDOP: Vertical Dilution of Precision
NMEA: The National Marine Electronics Association
GPGGA: Global Positioning System Fix Data
GPGSV: GPS Satellites in View
GPRMC: Recommended Minimum data
GPGSA: GNSS DOP and Active Satellite
GNSS: Global Navigation Satellite Systems
Accessories :
Standard accessories.
User manual: 1 Nos.
Connecting Wire: 1 set
Others :
Origin Parts : China, Taiwan, Japan.
Manufacturing in Bangladesh.
Warranty: 01 year.
Installation, Testing.
Training.
