Description

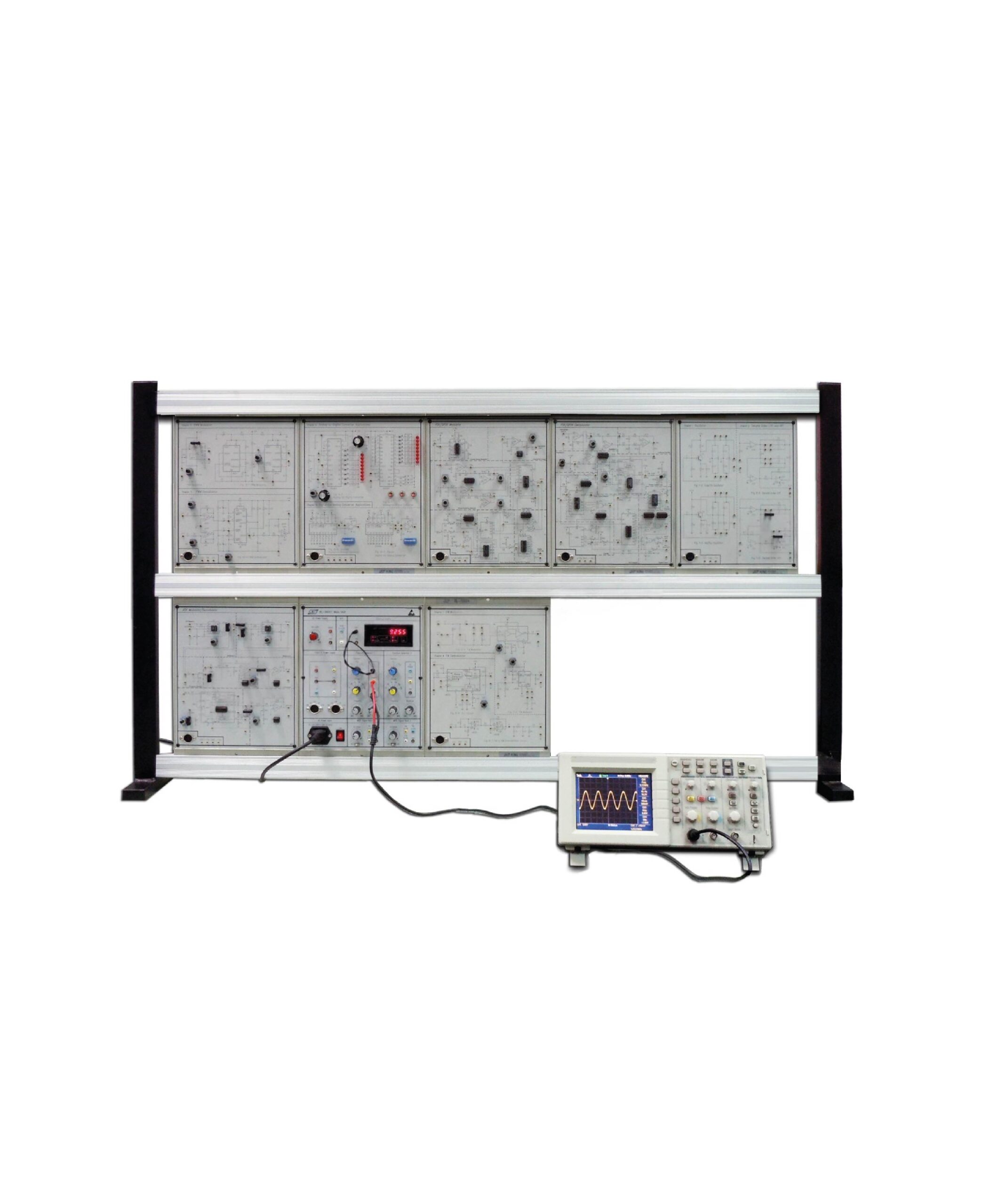

High Level Digital Communication Trainer

Technical Specification :

1. GMSK Modulator
Clock: 600 Hz ~ 2 kHz
Clock Mode: TTL Level
Data rate: 300 Hz ~ 1 kHz
Data mode: TTL Level
Carrier frequency: 10.7 MHz
Modulation Index: 0.5

2. GMSK Demodulator
Clock: 600 Hz ~ 2 kHz
Clock Mode: TTL Level
Data rate: 300 Hz ~ 1 kHz
Data mode: TTL Level
Carrier frequency: 10.7 MHz
Modulation Index: 0.5

3. Function Generator and DC Power Supply
Waveforms: Sine, Triangle, Square, TTL Pulse
Amplitude: >10 Vpp
Impedance: 50 Ω, ± 10%
Duty Control: 30% ~ 60%
Display: 6-Digit LED
Frequency Range 1: 10 Hz ~ 100 kHz (4 Ranges)
Frequency Range 2: 100 Hz ~ 1 MHz (4 Ranges)
Constant Voltage Output: ± 5 V, ± 12 V
Variable Voltage Output: 0 V ~ ± 15 V
Power Source: 220~230 V AC, 50 Hz, 1 Phase

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
