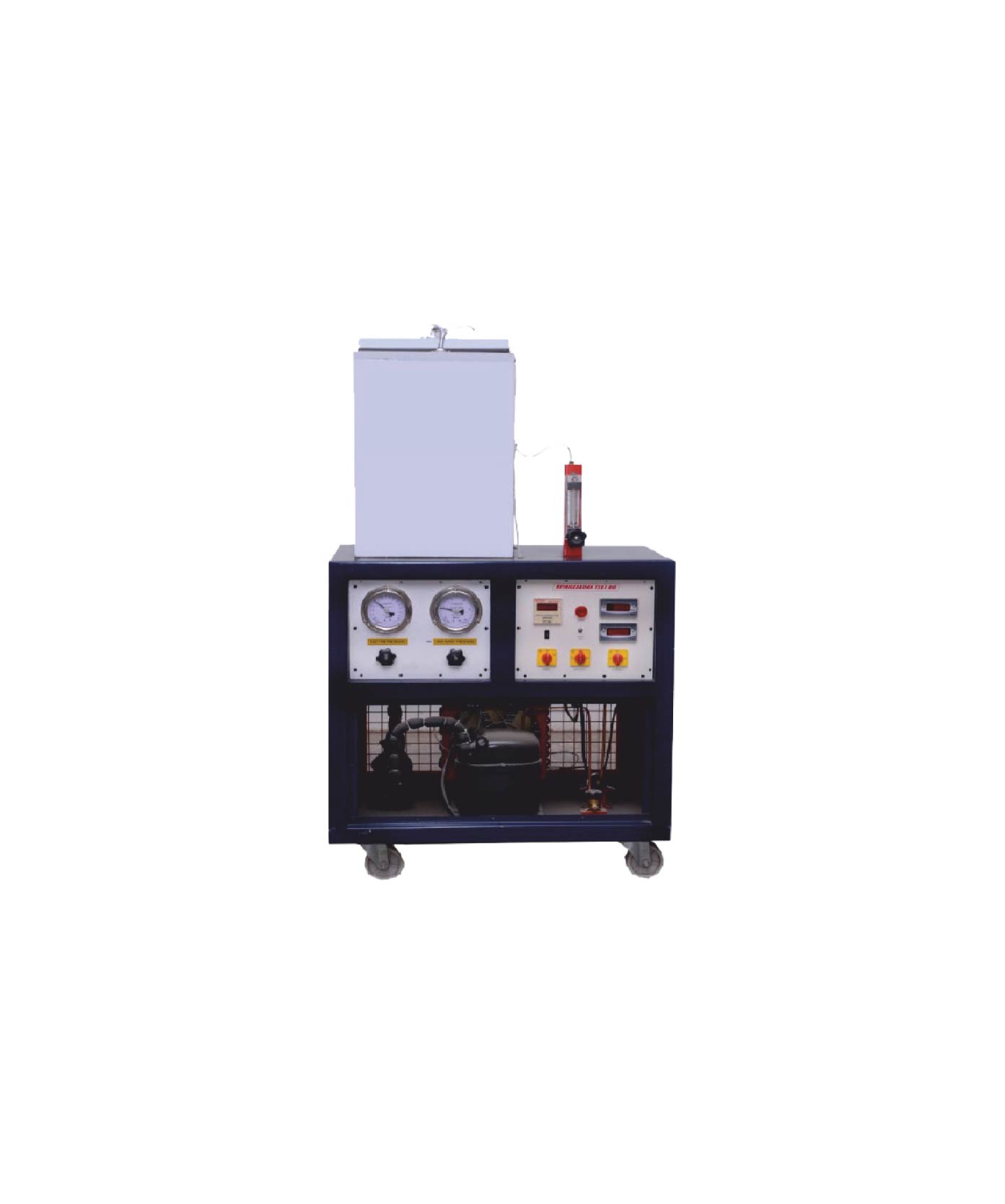

ICE Plant Training Model

Technical Specification :

Compressor:
Type: Hermetically sealed, reciprocating
Make: Emerson Copeland
Refrigerant: R-134A
Condenser: Air-cooled, compatible with compressor
Condenser Cooling Fan: Permanent lubricated motor, compatible capacity
Evaporator:
Type: Brine tank
Material: Stainless Steel, insulated with ceramic wool/P.U.F.
Agitator: Compatible capacity for mixing solution in evaporator
Expansion Device: Capillary tube, compatible capacity
Pressure Gauges: Two (for suction and discharge pressure)
Safety Controls:
Overload and overcurrent protectors for compressor
Time delay circuit
Low/high voltage auto-cut
Temperature Sensor: RTD PT-100 type
Scope of Study:
Understanding the working of the ice plant
Studying the refrigeration circuit
Calculating the coefficient of performance
Control Panel Components:
Digital Voltmeter: 0-500 V
Digital Ammeter: 0-19.99 Amp
Digital Temperature Indicator with multi-channel switch
Mains indicator and standard on-off switch
Additional Accessories:
Hand shut-off valves
Filter drier
Thermostat (Danfoss make)

Stainless steel ice tray
Installation and Calibration:
Includes necessary accessories and calibration.
Specifications:
Compressor: 1/2 HP, single-phase 220 V
Control Box: Included
Condenser: Air-cooled type, single-phase 220 V
Evaporator: Pin tube air-cooled type, transparent chamber with damper
Liquid Receiver: 1/2 HP
Accumulator: 1/2 HP
Expansion Valve: Manual expansion valve, capillary tube, electronic valve
for operation
Filter Dryer: 3/8″ nut clamp or welding type
Manometer: High and low pressure
Charging Nipple: Attached for charging
Sight Glass: Welding type or nut clamp type
Evaporator Chamber Dimensions: 320 x 350 x 500 mm
High and Low Pressure Switches: LPS, HPS

Accessories :
Connecting Wire
User Manual
Standard Accessories

Others :
Origin Parts : China, Taiwan, Japan.
Manufacturing in Bangladesh.
Warranty: 01 year.
Installation, Testing.
Training.
