Description

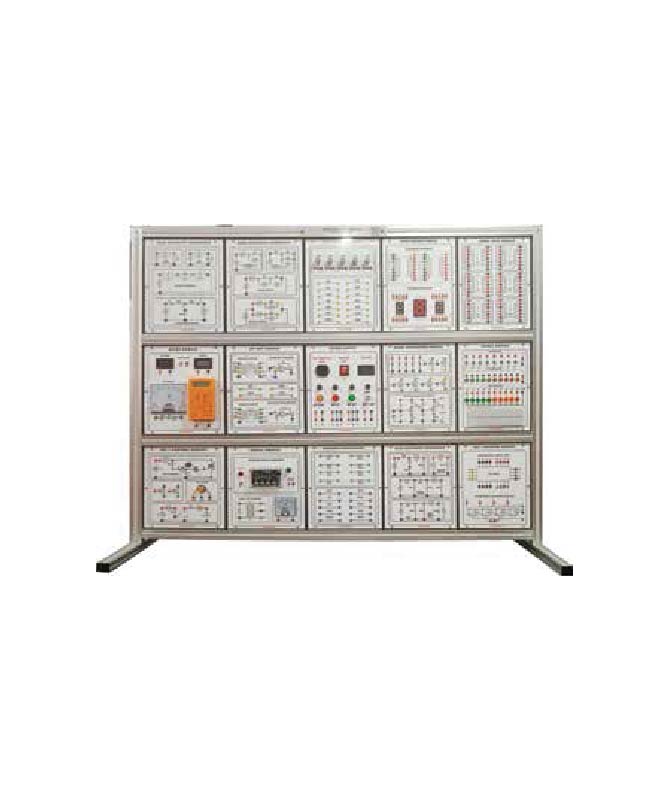

Industrial Electronics Circuits Trainer With Nine Module
And Function Generator & DC Power Supply

Technical Specification:

• The Industrial Electronics Circuits Trainer will consist of the following nine modules with Function
  Generator and DC Power Supply

Module 1: UJT and PUT Circuits :

• Experiment 1: UJT Volt-Ampere Characteristic Curve Measurement
• Experiment 2: UJT Relaxation Oscillator
• Experiment 3: UJT Equivalent Circuit
• Experiment 4: PUT Volt-Ampere Characteristic Curve Measurement

Module 2: SCR and GTO Circuits :

• Experiment 1: SCR Characteristic Measurement
• Experiment 2: SCR Phase Angle Controlled Circuit
• Experiment 3: Zener and SCR Circuit
• Experiment 4: GTO Characteristic Circuit
• Experiment 5: GTO Oscillation Circuit

Module 3: DIAC and TRIAC Circuits :

• Experiment 1: Zener Breakdown Characteristic Measurement
• Experiment 2: DIAC Characteristic Measurement
• Experiment 3: DIAC and TRIAC Circuit
• Experiment 4: Zener and TRIAC Circuit

Module 4: SCS and SSR Circuits :

• Experiment 1: SCS Characteristic Measurement
• Experiment 2: SCS Equivalent Circuit
• Experiment 3: SCS and SCR Circuit
• Experiment 4: SSR DC Output Circuit
• Experiment 5: SSR AC Output Circuit

Module 5: SBS Circuits and Temperature Sensors :

• Experiment 1: SBS Characteristic Measurement
• Experiment 2: SBS and TRIAC Circuit
• Experiment 3: Temperature Sensor Using SCR and LM335
• Experiment 4: Temperature Sensor Using SCR and TC620

Module 6: Optical Elements and Application Circuits :

• Experiment 1: Photoresistor Circuit
• Experiment 2: Photo Interrupter / Photo Coupler Circuit
• Experiment 3: Photodiode Circuit
• Experiment 4: Phototransistor Circuit

Module 7: MOSFET and Application Circuits:

• Experiment 1: MOSFET Characteristic Measurement
• Experiment 2: MOSFET Regulator
• Experiment 3: MOSFET Full Bridge Circuit
• Experiment 4: MOSFET PWM Controlled Circuit
• Experiment 5: MOSFET and PUT Circuit

Module 8: BJT and IGBT Application Circuits :

• Experiment 1: BJT Characteristic Measurement
• Experiment 2: BJT Full Bridge Circuit
• Experiment 3: BJT PWM Controlled Circuit
• Experiment 4: IGBT Characteristic Measurement
• Experiment 5: IGBT PWM Controlled Circuit

Module 9: SCR/SCS/DIAC/TRIAC Application Circuits :

• Experiment 1: SCR Application Circuit
• Experiment 2: CdS and SCR Application Circuit
• Experiment 3: DIAC and TRIAC Application Circuit
• Experiment 4: SCS and SCR Application Circuit

Function Generator & DC Power Supply Module :

• 1. Waveforms: Sine, Triangle, Square, TTL
• 2. Pulse Amplitude: >10 Vpp
• 3. Impedance: 50Ω ±10%
• 4. Duty Control: 30% ~ 60%
• 5. Display: 6-Digit LED Display
• 6. Frequency Range: 10Hz to 100 kHz (4 Ranges), 7.
• 7. 100Hz to 1 MHz (4 Ranges)
• 8. Frequency Control: Separate Coarse and Fine Tuning
• 10. Constant Voltage Output: ±5V, ±12V
• 11. Variable Voltage Output: 0V ~ ±15V
• 12. Power Source: 220V AC ±10%, 50Hz

Accessories:

• User Manual: 1 Nos
• With Standard Accessories.
• 4mm Safety Socket

Others:

• Parts Origin: China, Taiwan or Japan
• Manufacturing: Assemble in Bangladesh
• Installation
• Training
