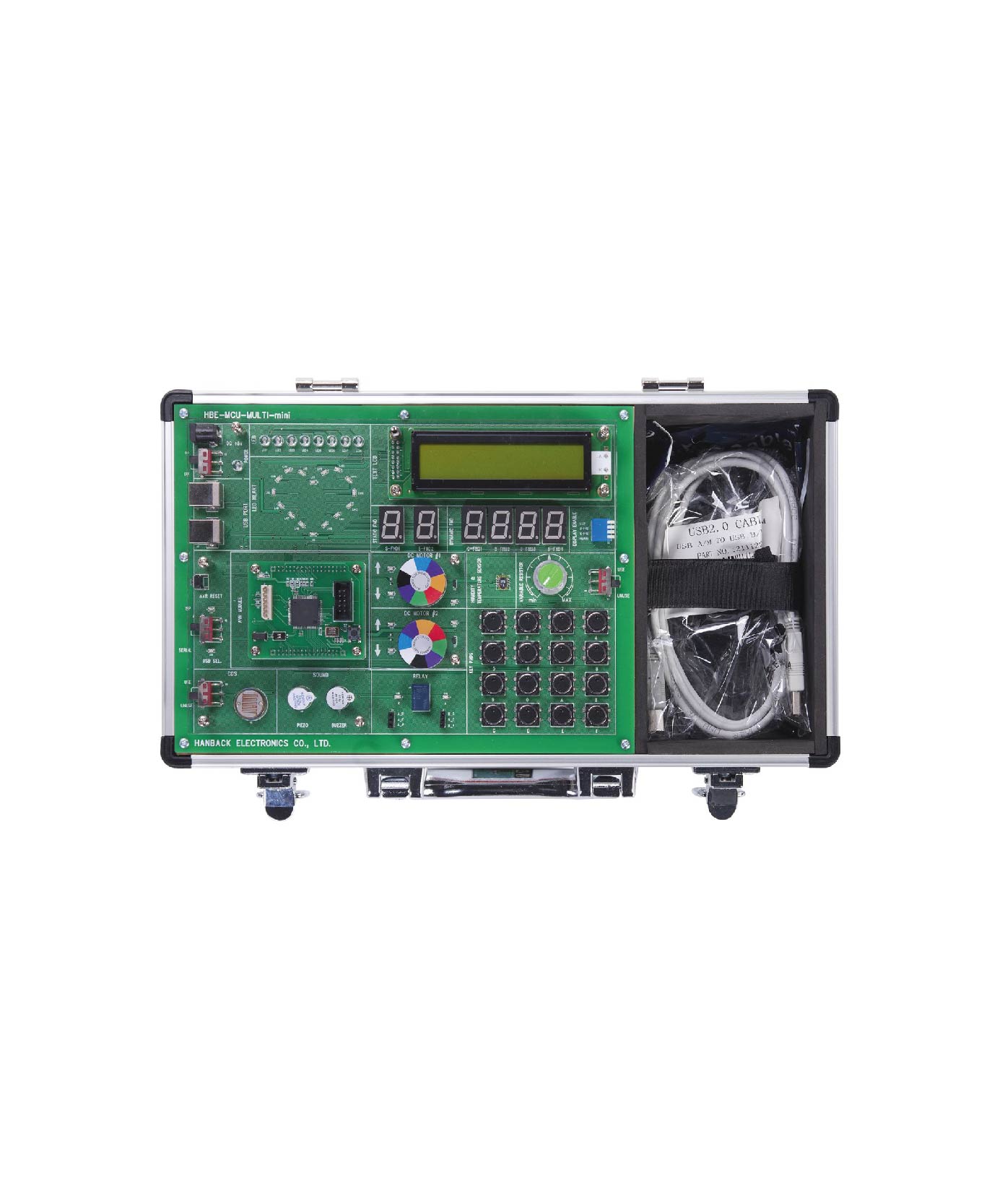

Microcontroller Training Kit

Technical Specification :

1. CPU & Memory
• CPU: AT89S52
• Memory: SRAM (256 KB), Flash EEPROM (256 KB), I²C EEPROM

2. Displays & Indicators
• LEDs: 5 PIE, red (8 ea)
• 7-Segment Display: 8-digit, red
• Dot Matrix: Min. 8 × 8 one color, red
• Character LCD: 16 × 2 characters (with backlight)

3. Converters & Interfaces
• A/D Converter: 12-bit resolution, MCP3202
• D/A Converter: 8-bit resolution, DAC0800
• Keypad: 4 × 4
• Stepping Motor Driver: 1 ea
• DIP Switch: Min. 8-pole — 1 ea
• Buzzer: Piezo — 1 ea

4. Communication & I/O
• Communication ports: RS232C, USB, PS/2, ISP — each 1 ea
• Infrared Receiver: 1 ea
• External I/O Connector: 26-pin connector — 1 ea

5. Power
• Power Supply: DC 12 V adapter

Experimental Contents (Lab Exercises / Demonstrations)
• Address BUS control
• 8255 control practices
• I/O port practices using LED
• 8 × 8 dot matrix display control
• 7-segment and character LCD control
• 4 × 4 tact switch control
• 8255 input control with DIP switch
• Stepping motor control with the stepping motor driver
• EEPROM and SRAM operation
• EEPROM control by I²C method
• PS/2 keyboard control
• Sound practices with Piezo
• A/D converter and D/A converter experiments
• Remote control by the infrared lamp
• Serial port communications (RS232 and USB)

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
