Description

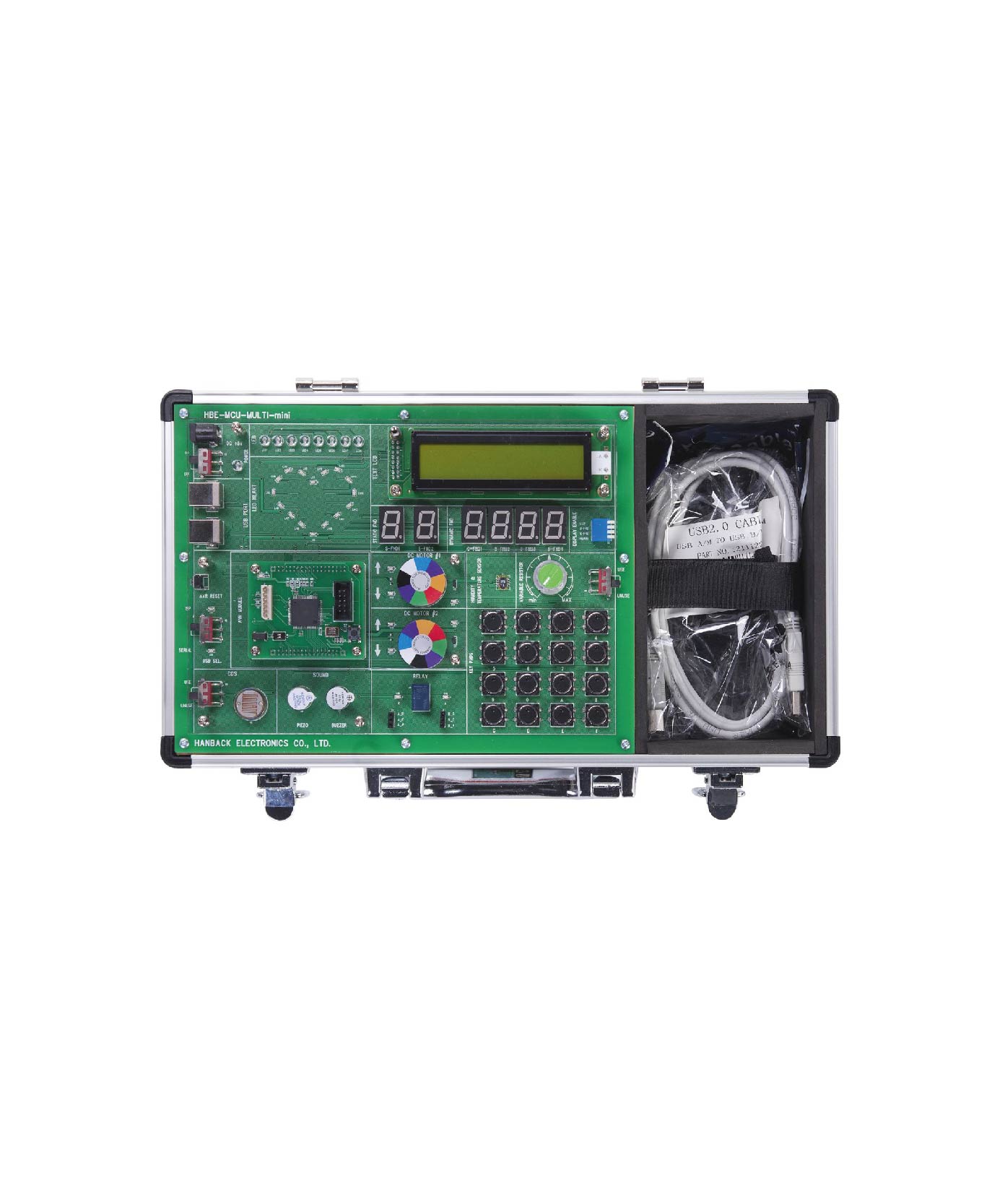

Microcontroller Training Kit

Features

• Basic 8 bit MCU Training Kit based ATMEL CPU (ATmega128A)
• Mounted several application modules on board
• Supply latest AVRISP mkII download tool
• Various example program sources for experiment
• AVRStudio 4 Full development Environment with Editor, Assembler and Simulator:
• Atmel’s superb development environment, AVR Studio 4, shall included on the CD so user do not have to download it. It include full editor, assembler and simulator for all the AVR devices. It
shall project based so that user can keep all your files together without any hassle.
• WinAVR C Compiler that is integrated into AVR Studio:
• The WinAVR C Compiler supplied will be unlimited and full of features.
• It can run from the command line but most users will probably prefer to integrate it into AVR Studio.
• Supply application example sources
• Mounted Latest USB AVR-ISP In System Programmer: AVRISP mkII
• Mounted various application modules for helping to understand MPU operation.

On-board functional blocks (ready for experiments):
• Display: LED, 7-segment (Static/Dynamic), Text LCD
• Switch: Push Button
• Sound: Piezo, Buzzer
• Sensor: Temperature/Humidity, Variable Resistor, CdS
• Communication: UART
• Others: Relay, DC Motor

Technical Specification :

MCU: AVR:
• Up to 16 MIPS Throughput at 16 MHz
• JTAG Interface, ISP Program
• 128 KB FLASH, 4 KB SRAM, 4 KB EEPROM
• 8-Ch PWM, 8-Ch 10-bit ADC
• I2C, SPI, 2 × 8-bit Timer, 2 × 16-bit Timer
• Dual UART

3. On-Board Devices
• Text LCD: 20 × 2 line — 1 EA
• LED: Red LED (LED ramp 8EA / Heart LED 16EA)
• Dynamic FND: 4 Digits 7-Segment — 1 EA
• Static FND: 7-Segment — 2 EA
• Push button: 6mm × 6mm — 16 EA
• DC Motor: 5 V DC — 2 EA
• UART: UART — 1 EA
• Piezo: 5 V DC — 1 EA
• Buzzer: 5 V DC — 1 EA
• Vres: Variable Resistor — 1 EA
• CdS: Photocell — 1 EA
• SHT11 (Temperature / Humidity Sensor):
• Temperature: -40 ~ +120 °C
• Humidity: 0–100 % RH
• Operation Voltage: 5 V / Output: I²C Interface
• Relay: 2 Channel — 1 EA; Operation Voltage: 5 V (Max 1 A @ 30 V DC / Max 0.5 A @ 125 VAC)

4. Experiment / Lab Contents (Topic List)
• Preparing for test & Install AVR Studio
• Turning on LED
• Static FND
• Dynamic FND
• Inputting several switches (Keypad)
• Displaying characters on Text LCD
• Receiving external input of Timer/Counter Interrupt
• Timer/Counter Overflow Interrupt
• DC motor control
• PWM
• UART Communication
• ADC
• EEPROM
• Temperature / Humidity Sensor operation
• Relay operation

5. Supplied Items
• Main Unit — 1 EA
• Manual and CD — 1 EA
• Charger (5 V / 2 A) — 1 EA
• USB Cable — 1 EA

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
Training
