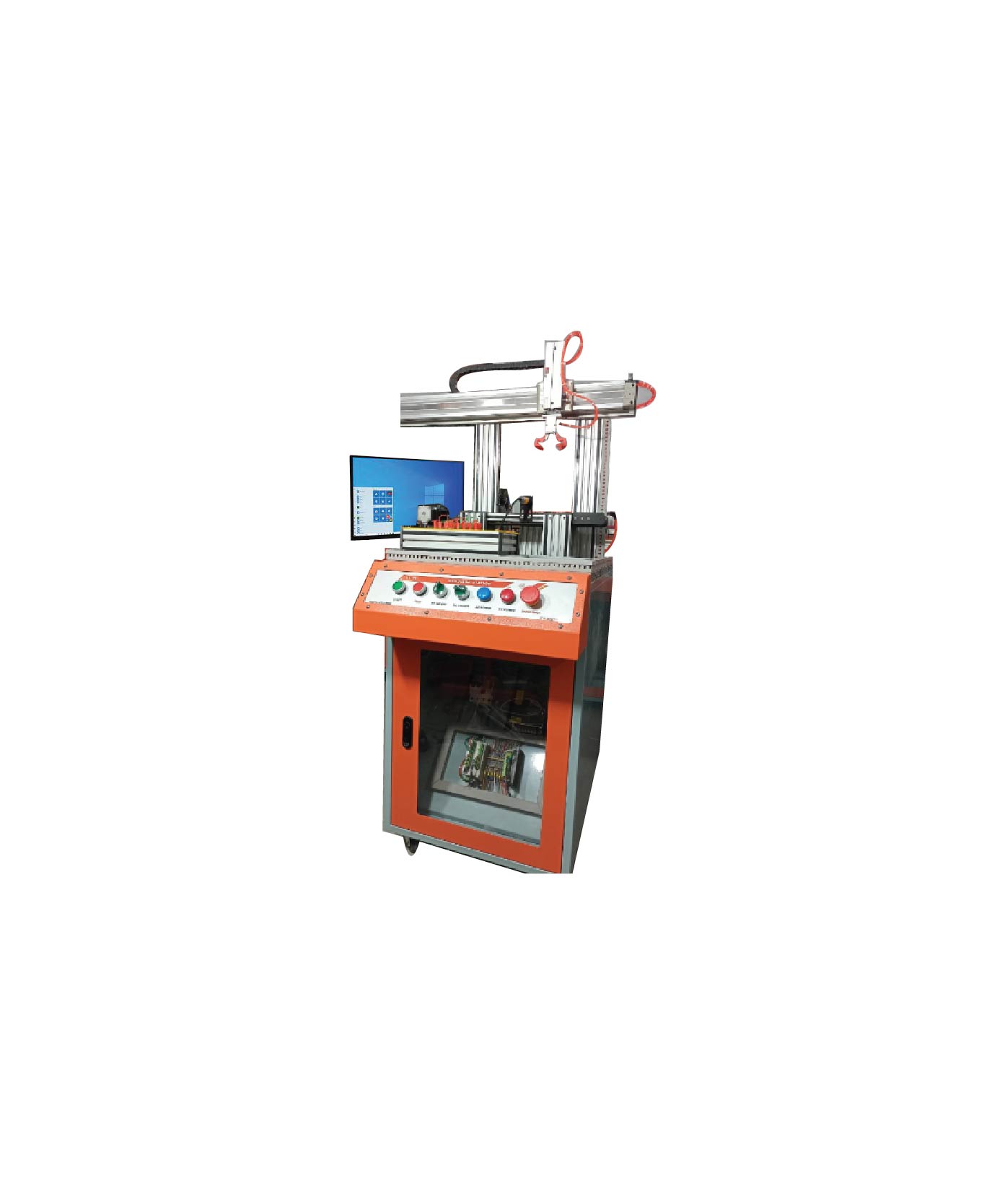

PLC based Pick & Place System
Technical Specification :
Simulated blocks:
The device operates with PLC, and adds Distribution,
transport and carry function.
Technical Parameters
Base Plate: Aluminum
Carry Function: Using Gripper method
Carry Function: Using Air suction method
Conveyer Belt Size: 540mm ~560mm
Number Of Conveyer Belt: 01 Set
Pneumatic cylinder: 04 Pcs
Pneumatic Motor: 01 Pcs
Optical Fiber Sensor:02 set
Solenoid Vaulve:5 pcs
Cabinet control circuit power supply: DC24V
Temperature: -10 ~ 40; Humidity: ≤90%;
Air pressure: 0.4 ~ 0.6Mpa
Machine capacity: ≤0.5KVA
Input power: single-phase, three-wire AC 220V±10%
50Hz/60Hz
PLC with Expansion Module
Main Supply: Single Phase, 220v ±10%, 50.60Hz
PLC Input: 16
PLC Output: 08 Nos (Relay)
PLC Output Relay Type
Operating Voltage: DC 24V
PLC Programming Language: Ladder, Functional Flow
Block Diagram
PLC Software operating system: XP, Windows 7, Windows
8
PC: Intel Core i5 (13th Generation or above) processor,
16GB RAM,1TB HDD, 512GB SSD, 19 Inch Monitor,
Keyboard and Mouse.
Accessories :
Standard accessories.
User manual: 1 Nos.
Connecting Wire: 1 set.
Software Disc: 01 set.
PC To PLC Communication Cable
Others :
Parts Origin: China, Taiwan, Japan
Manufacturing: Assemble in Bangladesh
Installation, Troubleshooting
Training
Warranty: 01 year
