Description

Security Alarm Training System

Technical Specification :

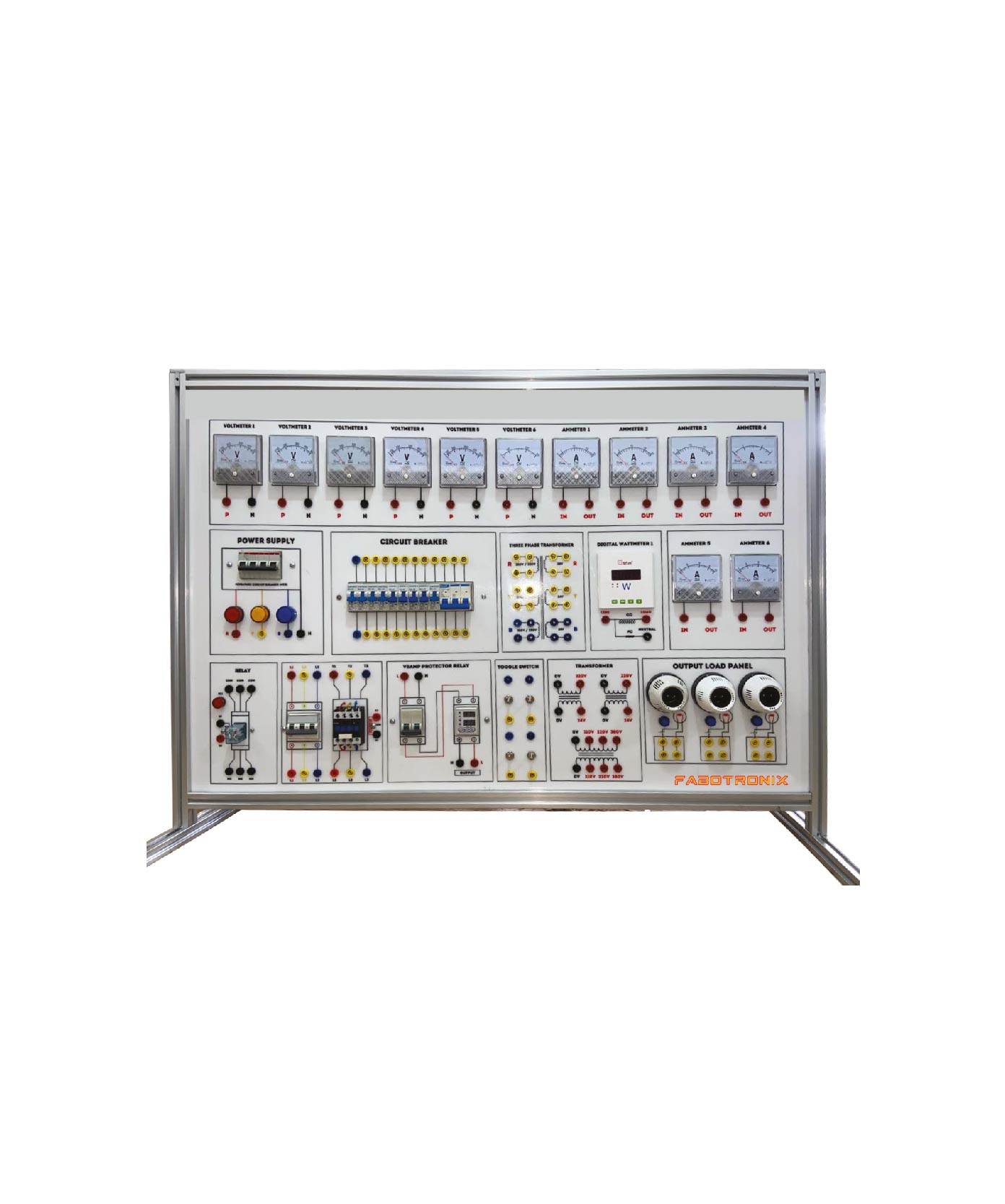

1. Aluminium Profile Modular Rack System (Table Top)
• Aluminium profile modular flat demo panel rack system (table
top) carrying various components housed in plastic enclosures
(panels) to minimize shock possibility in top two rows.
• The bottom two rows hold a wooden door with different
sensors mounted on it.

2. Input Supply Panel: 1 Phase AC & 12VDC/3A
• DC Multi Output power supply.
• Will supply DC power to neighbouring signal conditioning
circuit panels like EMT9, CIPI, CIP2, MIT12, CE7 etc. through 20 pin FRC cable.
• Will provide 1 Ph. AC supply through 3 MCB’s, 4A each to
power up other panels in the rack.
• Optionally Multichannel 4 position DPM for Speed, Torque etc.

3. Lamp Panel
• Incandescent lamp (15W) = 3 no
• Bulb ON-OFF switch for each bulb.

4. Relay Panel
• 8 nos. of LED Indicators.
• 8 nos. of relay with coil rating of 12VDC & contact rating of 220VAC/1A.

5. PIR Motion Sensor Panel
• Passive infrared sensor
• Relay output contact with load 1200W max (GLS lamp),
600W max (CFL, TL)
• Supply voltage: 230VAC
• Detection angle: 150 degree
• Detection range: 1-5 meters
• Present for Lux level 10 lux to 2000 lux, time 20 sec to 20
min, sensitivity setting present under the cover.

6. Ultrasonic Motion Sensor Panel
• Ultrasonic sensor
• Supply voltage: 230VAC
• Relay output contact with max load: 15A incandescent,
electronic or magnetic fluorescent ballast
• Detection angle: 360 degree
• Detection range: 1000 SF
• Present for Lux level 20 lux to 3000 lux, time 30 sec to 30 min, sensitivity setting preset under the cover

7. Window Safety Sensor Panel
• Window door open up to 90°
• Diffuse photo sensor with 12–24VDC operated,
sensing distance of 300mm, emitter source of red LED,
NPN open collector output with max load current of 100mA.
• Through beam photo sensor with 12–24VDC operated,
sensing distance of 10 meters, emitter source of
red LED, NPN open collector output with max load
current of 100mA.
• Magnetic reed switches with NC contact rating of
12VDC/100mA, sensing distance of 25mm.

8. Outdoor Camera Panel
Integral Unit Containing:
• Outdoor camera
• Bell switch
• Microphone
• Loud Speaker
• Infrared sensor
• Visual angle 92°

9. Indoor Video Panel
• Color Video monitor with three keys: monitor,
Unlock & talk
• Screen size: 3.5″
• 12VDC supply operated

10 Door Safety Panel
• Simulated wooden door with size of 370 (L) X 400 (H)
X 70 (W) with mechanical key lock
• Electric strike lock 12VDC/950mA operated, holding
capacity of 600 lbs
• Electromagnetic door lock 12VDC/2A operated,
holding capacity of 230 Kg
• Glass break cum magnetic sensor 12VDC/22mA
operated with NC contact of rating 25VDC/100mA

11. Siren With Flasher Panel
• Operating voltage: 12V DC @ 500mA
• Power: 6W
• Sound Level: 105 dV
• Flashing rate: 150/min.

List of Experiments
• To work with PIR (Passive infrared) motion sensor.
• To work with Ultrasonic motion sensor.
• To work with diffuse photo sensor.
• To work with through beam photo sensor.
• To work with magnetic reed switch.
• To work with electric strike lock.
• To work with electromagnetic door lock.
• To work with glass break (vibration) cum magnetic sensor.
• To work with video door phone & remote door control.

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
Training

Electrical Works Safety Simulation

Model: Ft- EWS011-02

Technical Specification :

Learning Creation (Production Tool) Function
• possible to directly create learning materials for lecture in the slide format.
• easily create audiovisual materials by insert images, 3D modeling, video, sound, text, and animation effects.
• The animation function should make it possible to create materials for step-by-step practices.
• 3D modeling type parts will be inserted, so it will be easy to explain the shape and operation method of the actual components.

Theory Study Function
• Easily learn about electrical circuits through essential data on basic circuits.
• It provide the same questions and drawings from the previous electrician qualification tests (total 7 test examples), thus increasing the
adaptability to your test.

Basic Learning Materials
• 26 types in total
• Sequence control basic theory: 6 types

Sequence control
• Electrical wiring tools
• Protective device
• Operation switch
• Detection switch
• Operation device
• Output device (load)

Sequence Control Basic Circuit (9 Types)
• Basic circuit
• Indication circuit
• Logic circuit• Self-holding circuit (memory circuit)
• Alarm circuit
• Timer circuit

• New input-priority circuit
• Sequential control circuit
• Interlock circuit

Sequence Control Circuit Practice
• 4 types
• Previous questions from the electrician qualification tests (2008–2019): 7 types

3D Parts Library
Circuit breaker and fuse:
• 4 types

Terminal block:
• 7 types (rotatable)

Control box:
• 4 types (rotatable)

Pushbutton switch:
• 5 types

Lamp type switch:
• 5 types

Selector switch and toggle switch:
• 4 types

Other switches (limit, emergency):
• 2 types

Indicator lamp:
• 5 types

Other devices (emergency bell, emergency light, buzzer):
• 3 types

Relay:
• 13 types

Electric motor:
• 6 types

VR Device Requirement
• will be supplied with VR device to practice virtual reality and
obtain the same effect as practicing using the real-life components.
• VR device and PC shall be work together.
• Circuit created in PC shall implemented on the VR device.
