Description

Training Bench with mounting test
measuring Instrument

Technical Specification :

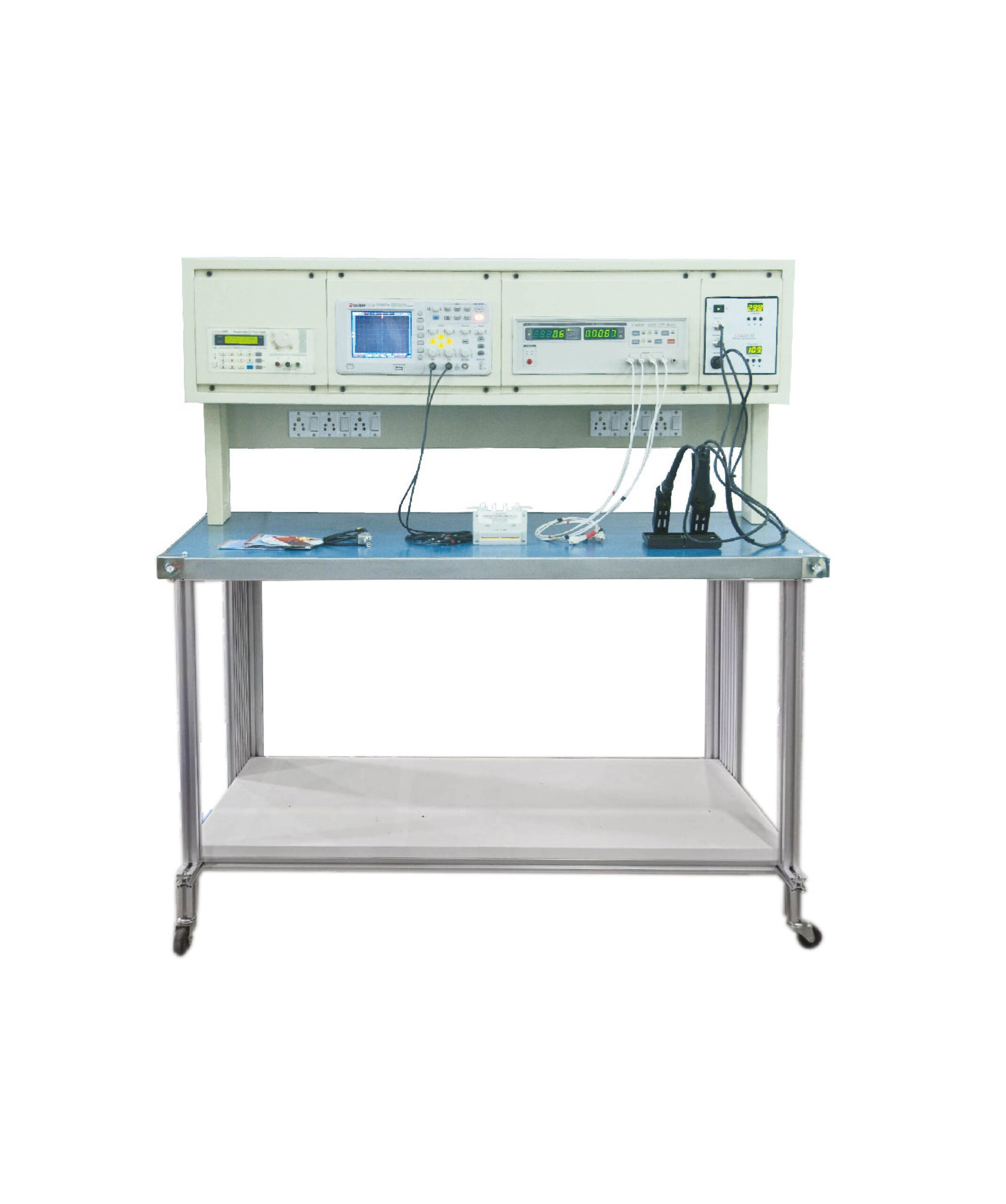

A. Training Bench with Instrument Housing Consist of
1. Training Bench
Height: 80cm
Width: 150cm
Depth: 90cm
4 adjustable stands or 4 wheels

2. Instrument Housing
B. Digital Oscilloscope
Bandwidth: min 25MHz
Sampling rate: 250MSa/s
7” rectangle color LCD
Vertical sensitivity: 1mV/div~20V/div
Trigger mode: auto, normal, single

C. DC Power Supply
Constant voltage and constant current
Low ripple and noise
CV/CC auto switching
Output Voltage: 30V

Output Current: 3A
Line Regulation: CV 1×10-4 + 3mV; CC 2×10-3 + 3mA
Load Regulation: CV 1×10-4 + 3mV; CC 1×10-3 + 3mA
Ripple & Noise: CV 1.5mVrms, CC 3mArms

D. RF Generator
Frequency: 100kHz ~150MHz (Harmonic 450MHz)
Range: 100KHz ~ 330KHz, 320KHz ~ 1.06MHz, 1MHz ~
3.5MHz, 3.3MHz ~ 11MHz, 10MHz ~ 35MHz and 34MHz ~150MHz
Output amplitude: 0~50mVrms
Built in frequency counter: 10Hz ~ 100MHz
INT & EXT Modulation: AM, FM
Input impedance: 1M (EXT L), 50 (EXT H)

E. Function Generator
Multi waveforms: Sine, Triangle, Square, and etc.
Output frequency: 0.03Hz ~ 3MHz
Built-in 5 digits counter
Frequency range: 1Hz ~ 15MHz
DC offset, symmetry continuously adjustable
VCF input

F. Digital Multi-meter
DCV: 600mV/6V/60V/600V
ACV: 6V/60V/60V/600V
DCA: 600uA/6000uA/60mA/600mA/6A/10A
ACA: 600uA/6000uA/60mA/600mA/6A/10A
Resistance: 600/6k/60k/600k/6M/60M
Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz

G. Soldering Station
Automatic cool air flow to reduce waiting time
Dual temperature settings for different applications.
Temp Range: 300°C and 500°C (dual)
Air Volume: 480 L/min
Power: 750 and 1500W
Power source: 220~230V AC, 50Hz, 1 Phase

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
Training
