Description

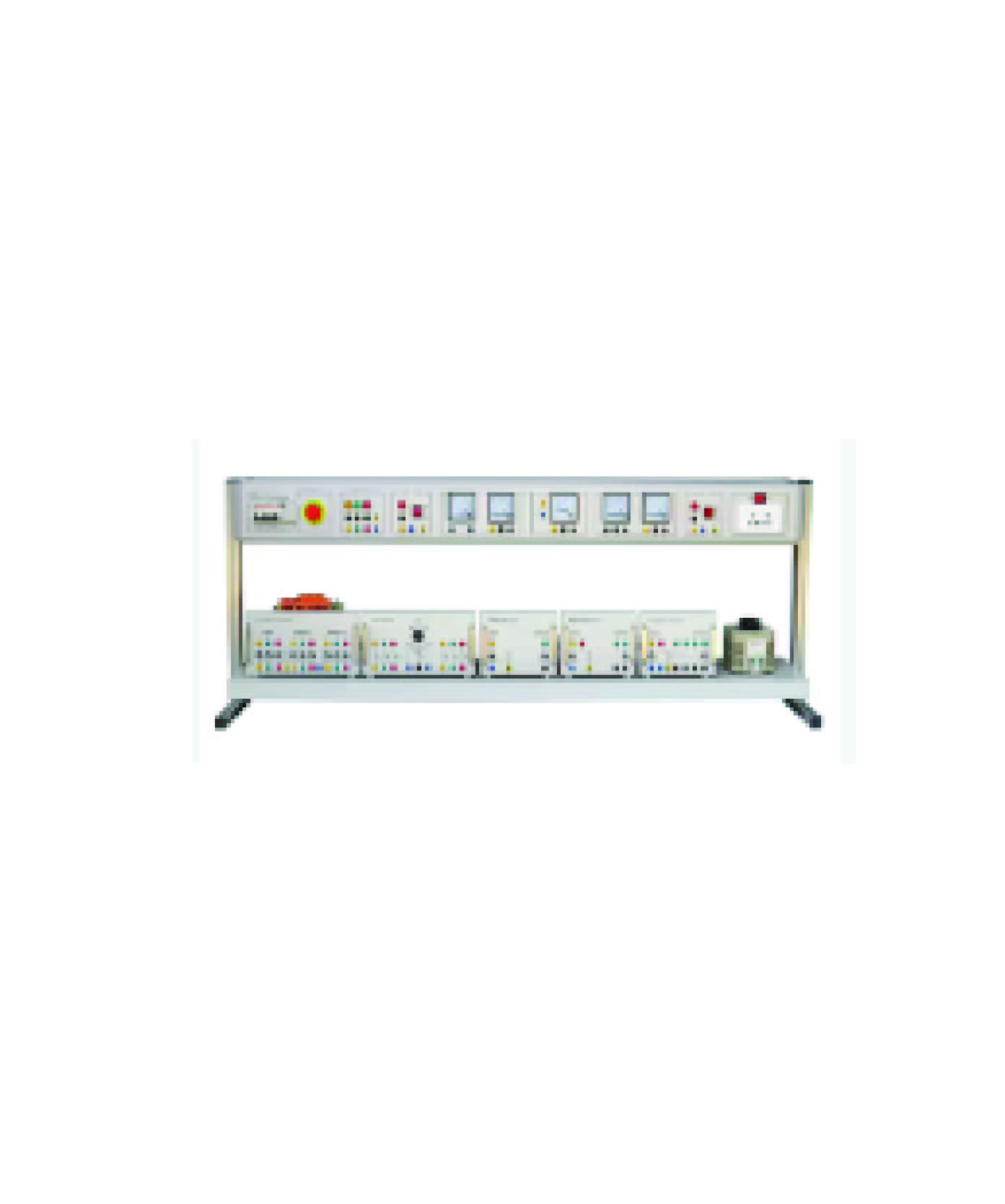

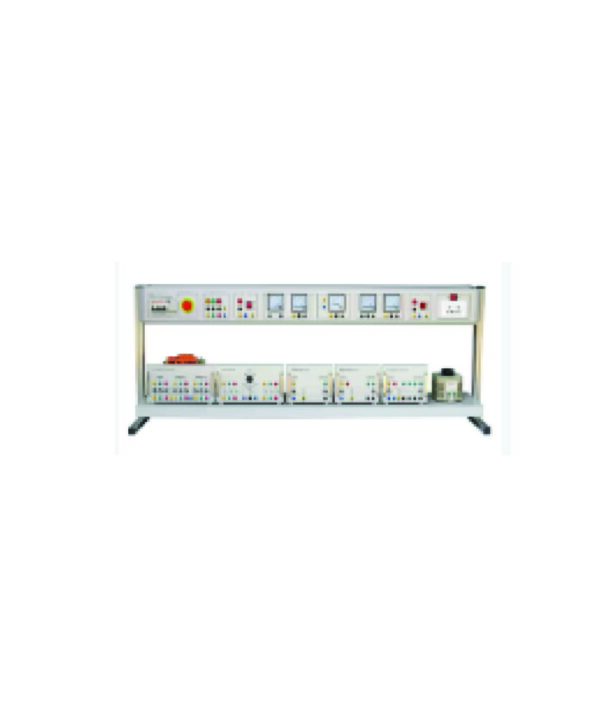

Transformer Training Workbench

Technical Specification :

Features :

Should have hands-on training in the use of components
being used in the field.
Should be composed of 3-phase transformer, 3-phase load
resistor, 3-phase variac and I/O measuring meters.
Should have semitransparent front panel in the see-thru
structure capable of observing wire connections inside the system.
Should support open architecture in the rear side of the

system for easily checking the components and wire connections.

Should have forced ventilation system to effectively suppress
heat caused by loads during the course of experiments.

Experiments can be performed:
Voltage regulation.
No-load loss measurement.
Regulation efficiency calculation.
Maximum efficiency measurement.
The polarity of transformer.
Y-∆ electrical connection practices.
∆-Y electrical connection practices.
Y-∆ electrical connection practices.
V-∆ electrical connection practices.
Operational practices on transformer (series / parallel)

Technical Specifications:

Input voltage:
3-phase AC 220V.
Circuit breaker: 1ea.
Power indicator lamp: 1ea.
Variac (variable power):
Power range: 0 ~ 240V (3-phase).
Input terminal: R, S, T.
Output terminal: U, V, W, N.
Transformer:
Rated capacity (500VA): 3ea.
Primary: 0V / 110V / 220V .
Secondary: 0V / 110V / 220V.
Input measuring meter:
Voltmeter (0 ~ 300V): 3ea.
Ammeter (0 ~ 3A): 3ea.
Wattmeter (0 ~ 750W): 1ea.
Output measuring meter:
Voltmeter (0 ~ 300V):
Ammeter (0 ~ 3A): 3ea.
Wattmeter (0 ~ 750W): 1ea.
Load resistor (Switch control type):
200Ω/400W: 3ea.
400Ω/200W: 3ea.
600Ω/300W: 3ea.

3D Simulation Software for Electrical Works
Learning creation (production tool) function:

It should be possible to directly create learning materials
for lecture in the slide format.
Should easily create audiovisual materials by insert
images, 3D modeling, video, sound, text, and animation
effects.
The animation function makes it possible to create
materials for step-by-step practices.
3D modeling type parts should be inserted, so it should
be easy to explain the shape and operation method of
the actual components.

Theory study function :
Easily learn about electrical circuits through essential
data on basic circuits.
It should provide the same questions and drawings from
the previous electrician qualification tests (total 7 test
examples), thus increasing the adaptability to your test.
Basic learning materials: 26 types in total.

Sequence control basic theory: 6 types :
Sequence control
Electrical wiring tools
Protective device
Operation switch
Detection switch
Operation device
Output device (load)

Sequence control circuit practice: 9 types :
Basic circuit
Indication circuit
Logic circuit
Self-holding circuit (memory circuit)
Alarm circuit
Timer circuit
New input-priority circuit
Sequential control circuit
Interlock circuit

Previous questions from the electrician qualification
tests (2008 – 2019): 7 types 3D parts library :
Circuit breaker and fuse: 4 types
Terminal block: 7 types (rotatable)
Control box: 4 types (rotatable)
Pushbutton switch: 5 types
Lamp type switch: 5 types
Selector switch and toggle switch: 4 types
Other switches (limit, emergency): 2 types
Indicator lamp: 5 types
Other devices (emergency bell, emergency light,buzzer):
3 types
Relay: 13 types
Electric motor: 6 types

Should be supplied VR device to practice virtual
reality and obtain the same effect as practicing using
the real-life components. VR device and PC should
work together. Circuit create in PC should be
implemented on the VR device.

Should be supplied following PC :
OS: Windows 7 32bit / 64bit (Windows 10 is highly
recommended.)
CPU: Intel i5 6th generation or later
HDD: 2GB or more
RAM: 8GB or more
Graphics card: NVIDIA GTX 660 or higher

Accessories :
Connecting Wire
User Manual
Standard Accessories

Others :
Origin Parts : China, Taiwan, Japan.
Manufacturing in Bangladesh.
Warranty: 01 year.
Installation, Testing.
Training.
