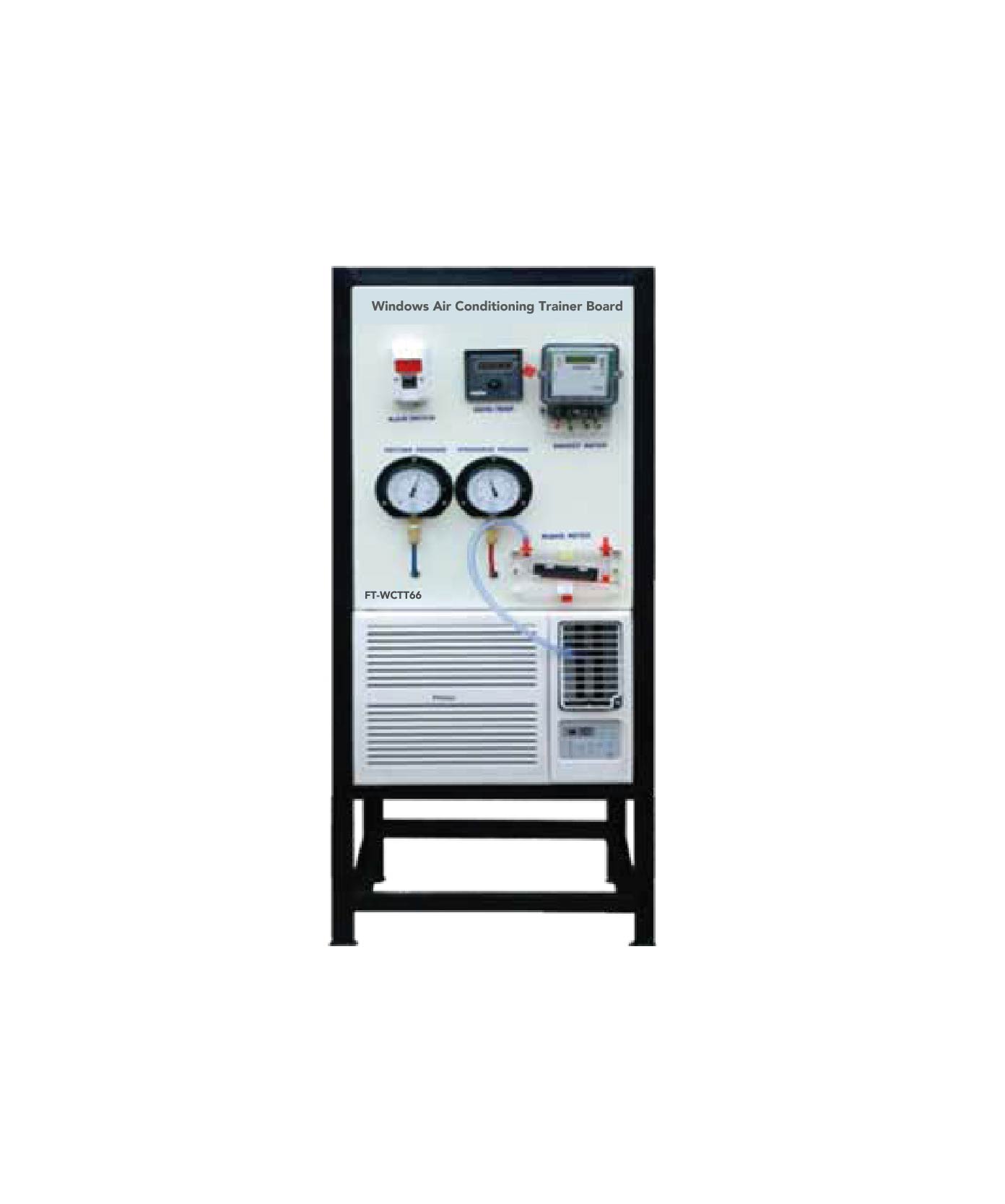

Windows Air Conditioning Trainer

Technical Specification :

1. General Information:
• Type: Compact window A/C trainer for technical education
• Cooling Capacity: 1.5 Ton (18,000 BTU/hr)
• Refrigerant: R-410A or R-32
• Power Supply: 220-240V, 50Hz

2. System Components:
• Single Unit Design: Condenser, evaporator, and compressor in the same housing
• Compressor Type: Reciprocating or rotary (educational grade)
• Fan Motors: Separate motors for condenser and evaporator
• Expansion Device: Capillary Tube

3. Instrumentation Panel:
• Pressure Gauges: Suction & Discharge
• Temperature Measurement: Digital thermometers with sensors at 4 points
• Electrical Measurement: Voltmeter and Ammeter
• Running Hour Monitoring: Running hour meter
• Data Logging Interface: Multi-channel thermocouple interface

4. Control & Safety Devices:
• Thermostat: Thermostat control with digital interface
• Speed Control: Speed selector switch
• Pressure Protection: High/Low pressure switch
• Compressor Protection: Overload protector

5. Training Features:
• Fault Insertion Panel: (3 faults)
1. Fan motor disconnect
2. Overload fault
3. Thermostat malfunction

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
