Description

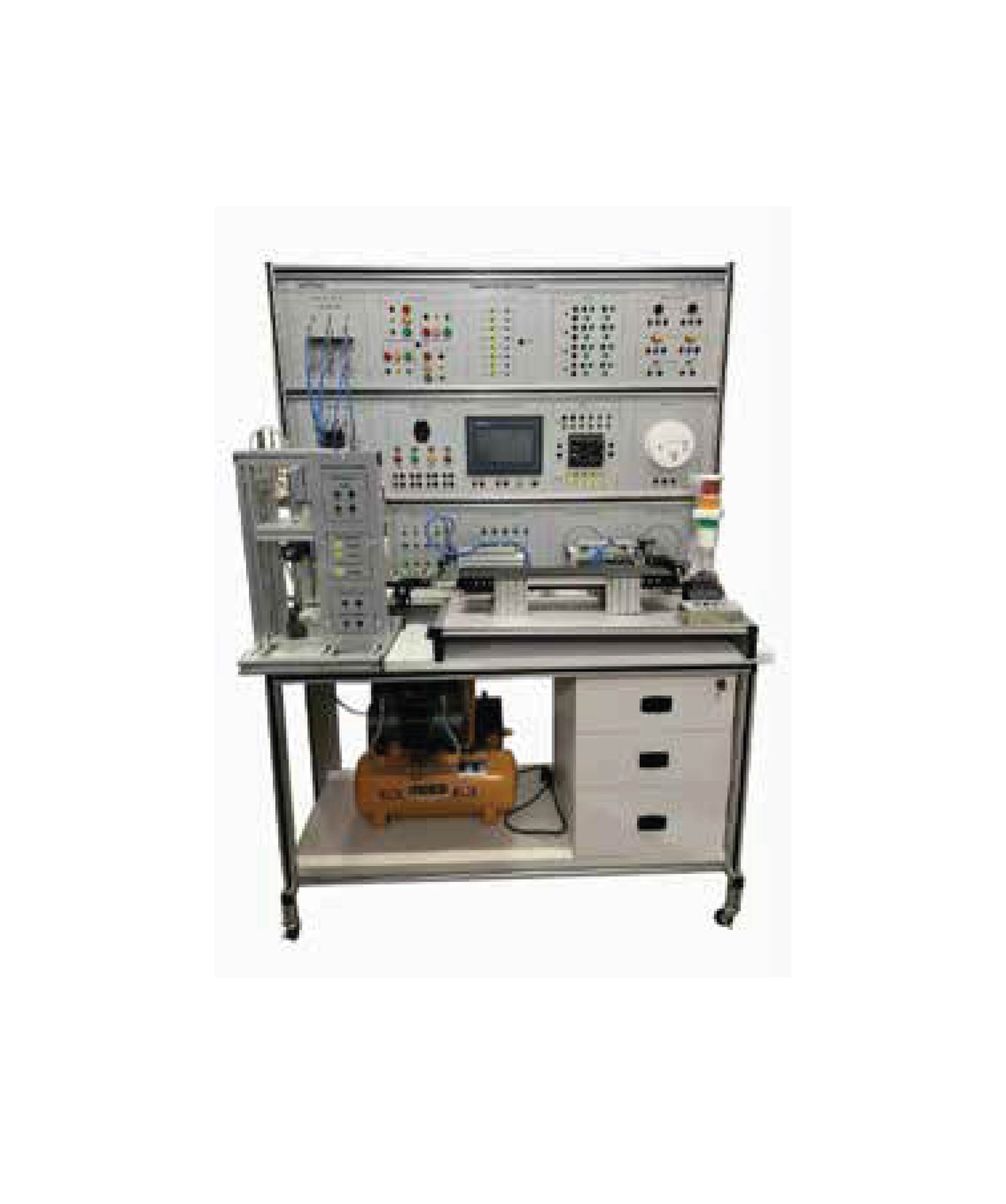

Industrial Multiple PLC Trainer

Specifications :

Experiment List:

– The constriction of nine different categories PLC.
– Interfacing method of nine different categories PLC.
– Programming method of nine different categories PLC.
– Pick & Place using PLC & Pneumatic Air Suction method.
– Pick & Place using PLC & Pneumatic Gripper method.
– Water Pump Control using nine different categories PLC.
– Fire Indication System using nine different categories PLC.
– Traffic Light Control using nine different categories PLC.
– The constriction of Pneumatic cylinder.
– Sequential control of three Pneumatic cylinder using nine different categories PLC.
– The constriction of Pneumatic solenoid valve.
– Control of Pneumatic solenoid valve using PLC.
– Interfacing of PLC & Pneumatic solenoid valve.
– The method of Control Relay using PLC.
– The methods of three phase Induction Motor Starter using PLC.
– Forward-and-reverse operation methods of three phase Induction Motor.
– The method of interfacing PLC with Input Switch.
– The method of interfacing PLC with Input Sensor.
– Operating method of interfacing proximity sensor with PLC.
– Operating method of interfacing photo sensor with PLC.
– Use of Variable Frequency Drive with PLC.
– Programming method of Variable Frequency Drive with PLC.
– The construction of Three Phase Induction motor.
– Interfacing Method of Three Phase Induction motor with VFD & PLC.
– The construction of Stepper Motor.
– Interfacing Method of Stepper Motor with PLC.
– The construction Seven Segment Display.
– Interfacing Method of Seven Segment Display with PLC.
– Interfacing Power Supply with nine different categories PLC

Technical Specification:
Main Structure:
– Main Voltage : 1 Phase 220V per 50 or 60Hz
– Working Table: 1EA – Working Frame
– 3 Step – Module Storage Cabinet : 2EA- Electric accessories Storage Cabinet : 1EA
– Ari Compressor : 1EA
– Air compressor : Power: AC 220V (Plus or Minus)10 percent 50Hz or 60Hz, motor power: 650W
– Nominal volume Air compressor: 9L normal output voltage 0.7 MPa, noise degree: 66 dB
– Dimension ::L x W x H (mm):1735 x700 x 1660. -Connection facility 2mm & 4mm Safety Socket

PLC Category -01
-PLC:SIEMENS-Part Number: 6ED1052-1MD00-0BA8
– Programming Language: Ladder,
Functional Flow Chart Diagram
– Built in Ethernet communication
– PLC Power supply: (1 No.)
– PLC Digital Input: 08
– PLC Analog Input: 04 Nos
– PLC Analog Output: 02 Nos
– PLC Digital output: 04
– PLC Display Unit : YES
– PLC Input Voltage: 24VDC, 1Amp
– Permissible range, Lower limit(DC): 20.4V
– Permissible range, Upper limit(DC): 28.8V
– Programming Software: LOGO Soft Comfort or equivalent
– Programming Cable: PLC to PC communication Cable
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension ::L x W x H (mm):295 x 225 x 45

PLC Category-02
-PLC: Mitsubishi
-Parts:FX3U-16MR-DS
-Power Supply: 24VDC
– Input Types:24VDC
– Output Types: Relay
– Communication Options: RS-232 , RS-485, RS-422, USB
– CPU Functions: High speed counters, 32 bit floating point math
– Program Memory Byte (Step): 128 K max. (64,000)
– Ambient Temperature: 0-55 degree C (in operation) -20 (Plus or minus)70 degree C (in storage)
– Ambient Humidity: 5-95percent RH, no condensation (in operation)
– Noise Immunity: 1000 Vpp noise voltage, 1 microsecond pulse width at 30-100Hz
– Digital Input: 8
– Digital Output :8 (Relay)
– Programming Software: Gx-Developer or equivalent
– Programming Cable: SC-09 or equivalent
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x45

PLC Category-03
-PLC:Fatek
-Parts:- FBs-14MAR
PLC input: 8 points Digital
– Triggering Power:24VDC
– (2 points high speed 100KHz, 2 points medium speed 20KHz,
4 points medium speed total 5KHz);
– PLC Output: 6 points relay
– Communication Port:RS232,USB
– Built-in power supply: SPW14-AC or D12 or D24
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Category-04
-PLC:Omron
-Parts: CPM1A-30CDR-A-V1
– Power Supply=220VAC
– Triggering Voltage:24VDC
– Digital Input=18
– Digital Output=12(Relay)
– Programming Cable: PLC to PC communication Cable
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Category-05
-PLC: Delta-Parts: dvp10ec00r3
– Power Supply:220VAC
– Triggering Voltage:24VDC
– Digital Input:06
– Digital Output:04(Relay)
– Programming Cable: PLC to PC communication Cable
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Category-06
-PLC: Allen Bradley
-Parts No: Micro820
– PLC Digital Input:12 Nos
– PLC Digital Output:07 Nos
– PLC Analog Input:04 Nos
– PLC Analog Output:01No
– 20-point controllers
– Provides embedded 0…10V non-isolated 4 channel
analog input and 1 channel analog output for speed
control of an AC drive
– Provides embedded communications via non-isolated
serial port (for RS-232 and RS-485 communications)
and Ethernet port
– Communicates via EtherNet or IP
– Provides embedded
microSDTM slot for program transfer, datalog,
and recipe management
– Provides embedded support for up to four 10k
thermistor temperature inputs
– Supports program download through USB with an
optional 3.5-in. Remote LCD – Supports up to two
Micro800 Plug-in Modules
– Programming Cable: PLC to PC communication Cable
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Category-07
-PLC: LS
-Parts:XBC-DR30SU
– Power Supply=220 V AC
– Digital Input =18
– Digital Output=12(Relay)
– Triggering Voltage:24VDC
– Programming Cable: PLC to PC communication Cable
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Category-08-
PLC: Schneider Electric
-Parts: SR3B101BD or AFPX-C40R
– Built in display: LCD
– High-speed Operation
– Number or control scheme lines
– Maximum Number of I & O Points:
– 0…500 with FBD programming
– 0…240 with ladder programming.
– Cycle time : 6…90 ms
– Backup time : 10 years at 25 degree C
– Checks : Program memory on each power up
– Supply voltage limits : 19.2…30 V
– Discrete input voltage : 24 V DC
– Discrete input current : 4 mA
– IP degree of protection : IP20 (terminal block)
conforming to IEC 60529
– Mechanical durability : 10000000 cycles (relay output)
– Output thermal current : 8 A for all 4 outputs (relay output)
– Number of outputs : 4 relay output(s)
– Discrete input number : 6 conforming to EN or
IEC 61131-2 type 1
– Programming Cable: PLC to PC communication Cable – Connection facility 2mm & 4mm Safety Socket – Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Category-09
-PLC :Wecon
-Parts: LX3V-0806MR-A2
– Power Supply=220VAC
– Digital Input=8
– Digital Output=6 (Relay)
– Triggering Voltage:24VDC
– Programming Cable: PLC to PC communication Cable
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

PLC Pick & Place using Pneumatic Air Suction Module:
– Base Plate: Aluminum Profile
– Structure: Aluminum Profile
– Function Indicator: Tower Type (Red, Green, Yellow)
– Carry Function: Using Air suction method
– Pneumatic cylinder: 02 Pcs
– Optical Fiber Sensor:02 set
– Solenoid Vaulve:3 pcs
– Cabinet control circuit power supply: DC24V
– Temperature: -10 to 40 ; Humidity: getter than
or equal 90 percent ;
– Air pressure: 01 No
– Input power : single-phase, three-wire AC 220V(plus minus)
10 percent 50Hz or 60Hz
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):600 x 460 x 20

PLC Pick & Place using Pneumatic Gripper Module:
– Base Plate: Aluminum Profile
– Structure: Aluminum Profile
– Function Indicator: Tower Type (Red, Green, Yellow)
– Carry Function: Using pneumatic gripper method
– Pneumatic cylinder: 02 Pcs – Optical Fiber Sensor:02 set
– Solenoid Vaulve:3 pcs
– Cabinet control circuit power supply: DC24V
– Temperature: -10 to 40 ; Humidity: greater than
or equal 90percent ;
– Air pressure: 0.4 to 0.6Mpa
– Input power : single-phase, three-wire AC 220V plus minus
10 percent 50Hz or 60Hz
– Connection facility 2mm & 4mm Safety Socket
– Module Dimension : L x W x H (mm):600 x 460 x 20

Water Pump Control Module:
– Base Plate: Aluminum Profile
– Water Chamber: Upper And Lower
– Water through: Solenoid Valve
– Water Pump: 5W
– Operating Voltage : 24VDC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension : L x W x H (mm):600 x 460

Fire Indication System Module:
– Smoke Sensor
– Interfacing PLC and DC power supply Connection facility
– Interfacing facility With water level control Module
– Operating Voltage : 24V
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Traffic Light Control Module:
– Built-in ,Green, Yellow, Red Indicator for interface
PLC and DC power supply Connection facility
– Operating Voltage : 24V
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Pneumatic Control Module:
– Pneumatic cylinder: 3EA
– Temperature: -10 to 40 ;
– Humidity: greater than or equal 90 percent ;
– Air pressure: 0.4 to 0.6Mpa
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Pneumatic solenoid valve Module:
– Pneumatic solenoid valve: 3EA
– Operating Voltage : 24V
– PLC connection point : 3EA
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45
– Interfacing facility Pneumatic control Module

Relay Control Module:
– Double pole Double Through Relay: 04 Set
– Relay Operating Voltage:24V
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45
– Motor Starter module:
– Magnetic Contact switch:02 nos
– Star Delta Status Indication facility
– Relay Operating Voltage:220V to 240VAC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Input Switch Module:
– Pushbutton Switch:04 Nos
– Push on Push Off Switch: 04 Nos
– Relay Operating Voltage:24VDC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Sensor module:
– Proximity Sensor:02 Nos
– Photo Sensor:02 Nos
– Thermocouplar:02 Nos
– Operating Voltage:24VDC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Output Indicator Module:
– Output Indicator:04 Nos
– Operating Voltage:220V~240VAC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Variable Frequency Drive Module:
– Variable Frequency Drive:01 No
– Input Three Phase/Single Phase
– Output Three Phase 220VAC (PWM)
– Capacity:400watts
– Input Operating Voltage:220V~240VAC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Three Phase Induction motor Module:
– Three Phase Induction Modeule:01 No
– Connection system : Delta
– Input Operating Voltage:220V~240VAC
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Stepper Motor Control Module: (FT-401F-M24)
– Unipolar Stepper Motor:01 No
– Bipolar Stepper Motor:01 No
– Input Operating Voltage:5V/12V
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Seven Segment Display module:
– Seven Segment Display:02 no
– Input Operating Voltage:5V & 12V
– PLC Connection facility 2mm & 4mm Safety Socket
– Module Dimension :L x W x H (mm):295 x 225 x 45

Power Supply Module:
– Input Operating Voltage:220V~240VAC
– Output AC Voltage:220V,50Hz – Output DC Voltage:
5V(1Amp),12V(1Amp),24V(1Amp)
– PLC connection point facility 2mm and 4mm Safety Socket
– Fuse for Safety protection facility.

Brand PC:
Processor: Intel Core i7 -14700K (14th Generation),
(33MB CPU Cache, 4.5GHz Base up to 5.6GHz),
DDR-4 & DDR-5 Memory Type
CPU Cooler – Supportive for Intel Core i7-14700K Processor
(Cooler type -Liquid CPU Cooler,
No. of Fans-3(at least), Fan Speed- 1500RPM to 20000RPM)
Motherboard- Supportive for processor intel core i7-14700K
(Memory type-DDR5, Memory Slot-4
(at least-128GB), Storage slot-4,
WiFi-6 built, must be integrated with
external Graphics Card) RAM: 16GB (DDR5-Type,
Bus Speed-6000MHz to 8000MHz),
Storage-SSD: 1TB at least (with GDDR5-Memory Type)
Graphics Card External Graphics Card at least 8 GB
(Supportive Processor & Motherboard)
Monitor at least 21.5-inch,
Display Resolution: 1920×1080 (W x H) FHD
OS Windows 10/11 (Genuine Version)
Mouse & Keyboard- Supportive mouse & keyboard.
Computer Table- High density melamine chip board (Size- 48W×22D×35H)

Accessories
Connecting Wire: 1 set
Standard Accessories

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
Training
