Description

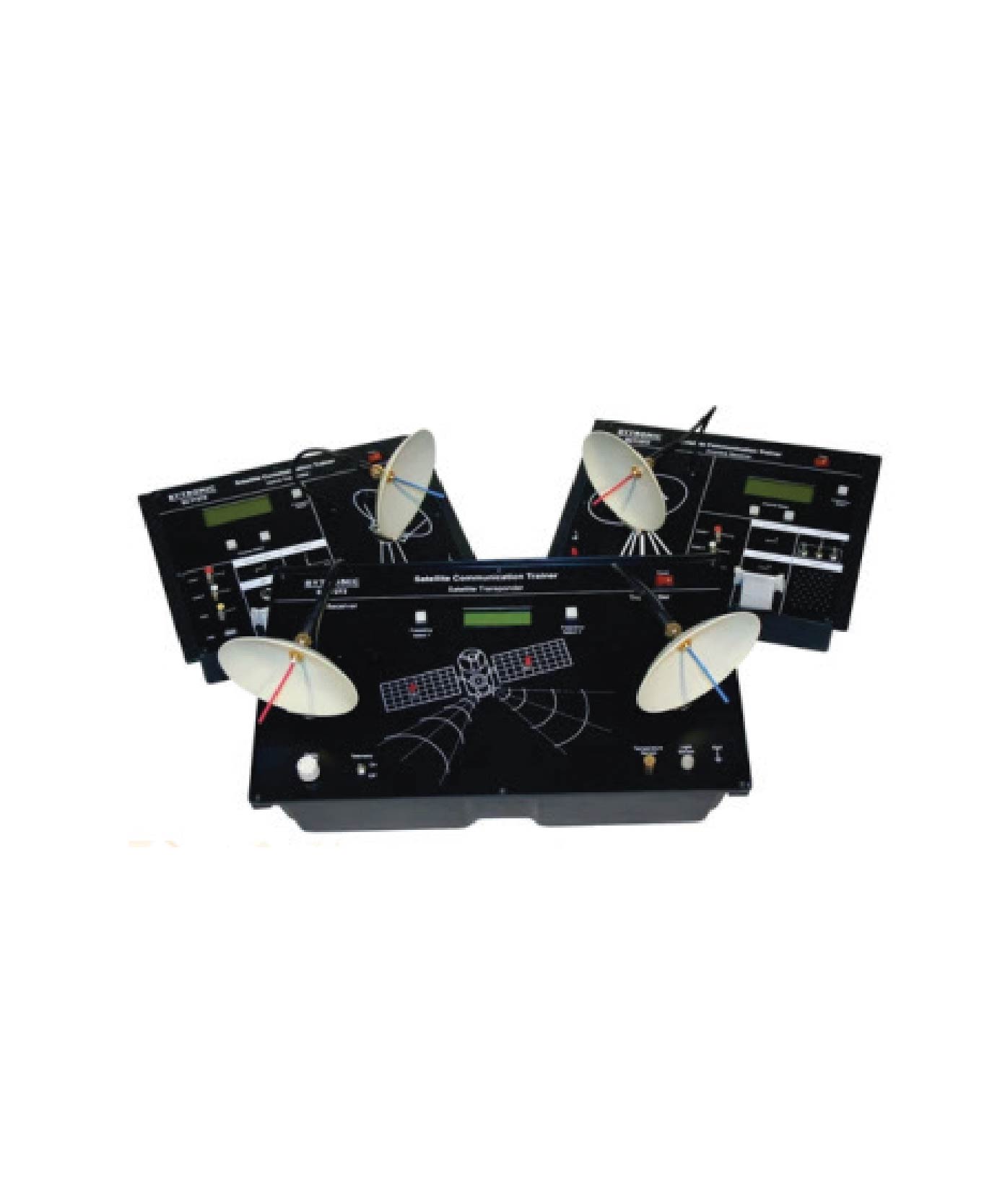

Satellite Communication Trainer

Technical Specification :

Scope of Learning:
Transmitting & receiving three separate Signals (Audio, Video, and
Tone/Voice) simultaneously through satellite link and perform Link Fail Operations
Transmitting & receiving Function Generator Waveforms through Satellite Link
Transmitting and receiving PC data through satellite link
Study the delay between Uplink transmitter and Downlink receiver
during data transmission
Send Tele-command and receive Temperature & intensity of light from satellite
Calculate the carrier to noise ratio for a satellite link
Calculate signal to noise ratio for a satellite link
Uplink Transmitter:
Transmitter with selectable frequency conversion
2.4GHz Band uplink selectable frequencies
Wide band RF amplifier. No manual matching required.
16 MHz Bandwidth
Frequency select switch and LED indication.
FM Modulation of Audio and Video.
Coverage area 35m Indoor and 100m outdoor
Transmit Audio, Video, Digital data, PC data, Tone, Voice,
function generator waveforms etc.
Separate section for telemetry operation.
Inbuilt Tone generator:
Frequency-100Hz to 1 KHz.
Amplitude-0V to IVpp.
Separate terminals provided for different inputs.
Satellite Link:
Transponder with selectable Uplink and downlinks frequency conversion.
Light and Temperature sensors for telemetry operations.
Delay knob provided for simulated Transition delay experiment.
Optional Solar power supply for Transponder Unit. Detachable
Dish Antennas.
Downlink Receiver:
Receiver with selectable frequency conversion.
Receives and demodulate three signals simultaneously.
Built in speaker for audio and video output.
Detachable Dish Antenna.
Power Supply: 230 V AC ±10%, 50/60 Hz
Machine Holder
Quantity:2
Material: Compressed wood panels with laminated melamine surface
Dimension(mxmxm):2440x470x750mm
Top surface around: 16mm laminated board 16mm top visual
with Imm edging Color: Black, White, Wooden and etc Surface
Will be scratch proof
Base cold rolled mild Steel tubular frame or made with
heavy-duty mild steel
PVC leg stopper for floor protection
Paint: Mild steel part protected with powder coating heat paint
PVC edge banded with hot melt glue to protect moisture gaining
Phosphatized and Oven baked power paint finish for anti-rust and longevity
Anti-insects chemicals added to make the board termite-proof
Assembly required
Package contains Nos
Audio-Video Cable 2 Pin 2
Patch Cord 16″ (4 mm) 2
Microphone 1
Dish Antenna 4
USB Cable 2
Pencil Cell (Microphone) 1
Mains cord 3
PC Software 1

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
Training
