Description

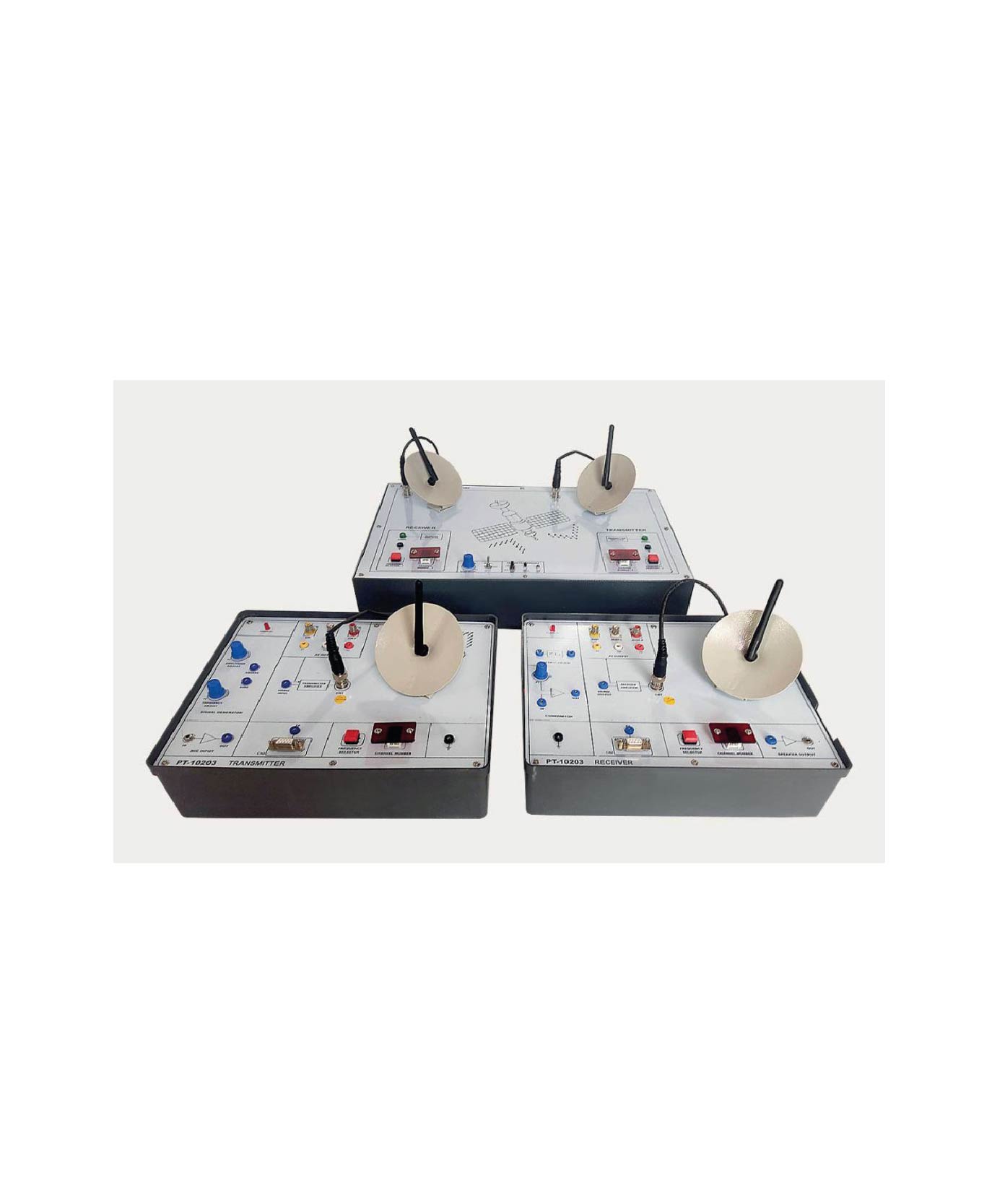

Wire and Wireless Networks Trainer
Technical Specification :
Module One — Network Interface Circuits
Experiment 1 — Wire Network Interface Circuit
• Using Device: PC
• Hardware Requirements: Support USB
• Operating System: Microsoft Windows
Experiment 2 — Wireless Network Interface Circuit
• Using Device: Cellular Phone
• Hardware Requirements: Support Bluetooth
• Operating System: Android
Module Two — Photo & Switch Sensor Network Circuits
Experiment 1 — CdS Sensor Network Circuit
• Operating Wavelength: 500 nm–580 nm
• Resistance Range: 10 K–5 M
Experiment 2 — Phototransistor Network Circuit
• Operating Wavelength: 430 nm–670 nm
Experiment 3 — Tilt Switch Network Circuit
• On Angle: 55°–125°
Experiment 4 — Reed Switch Network Circuit
• Contact Resistance: 150 m (Max.)
• Insulation Resistance: 10¹ (Min.)
Module Three — Environment Sensor Network Circuits
Experiment 1 — Red Color Sensor Network Circuit
• Operating Wavelength: 590 nm–720 nm (Ap: 660 nm)
Experiment 2 — TC74 Temperature Sensor Network Circuit
• Measurement Range: -40°C to +125°C
• Accuracy Error (max): ±3°C for 0°C to 125°C
Experiment 3 — DHT11 Humidity Sensor Network Circuit
• Measurement Range: 20–90% RH
• Accuracy Error: ±5% RH @ 25°C
Module Four — Infrared & Gas Sensor Network Circuits
Experiment 1 — Infrared Sensor Network Circuit
• Frequency Response: ±10 dB for 0.3 Hz to 3 Hz
• Field of View: 21°–159° (X-axis) and 27.5°–152.5° (Y-axis)
Experiment 2 — Alcohol Sensor Network Circuit
• Sensing Body Resistance: 100 k–500 k (100
ppm Alcohol)
• Operating Humidity: <95% RH
Experiment 3 — Natural Gas Sensor Network Circuit
• Sensing Body Resistance: 2 k–20 k (5000 ppm
Methane)
• Operating Humidity: <95% RH
Module Five — Interactive Network Circuits for Smart Homes (I)
Experiment 1 — Interactive Network Circuit for Home Light
• When the light is dark, network will automatically turn on the LED
Experiment 2 — Interactive Network Circuit for Home PM2.5
• When the air pollution is severe, network will automatically
turn on the fan
Module Six — Interactive Network Circuits for Smart Homes (II)
Experiment 1 — Interactive Network Circuit for Home
Temperature
• When the temperature is high, network will automatically
turn on the fan
• Fan’s Speed:
• Fan no operation (temperature < 21°C)
• Fan at low speed (22°C temperature < 27°C)
Experiment 2 — Interactive Network Circuit for Heart Rate
• When the heart rate is low, network will automatically turn
on the alarm
• Alarm level:
• Continuous alarm (heart rate < 40)
• No alarm (50 < heart rate < 90)
• Intermittent alarm
Function Generator & DC Power Supply (Included)
• Waveforms: Sine, Triangle, Square, TTL Pulse
• Amplitude: >10 Vpp
• Impedance: 50 ±10%
• Duty Control: 30%–60%
• Display: 6-Digit LED Display
• Frequency Range: 10 Hz to 100 kHz (4 Ranges); 100 Hz
to 1 MHz (4 Ranges)
• Constant Voltage Output: 5 V, ±12 V
• Variable Voltage Output: 0 V–15 V
• Power Source: 220–230 V AC, 50 Hz, 1 Phase
Accessories:
Single-phase power cord
4mm Banana Socket-1Set
User Manual
Others:
Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
