Description

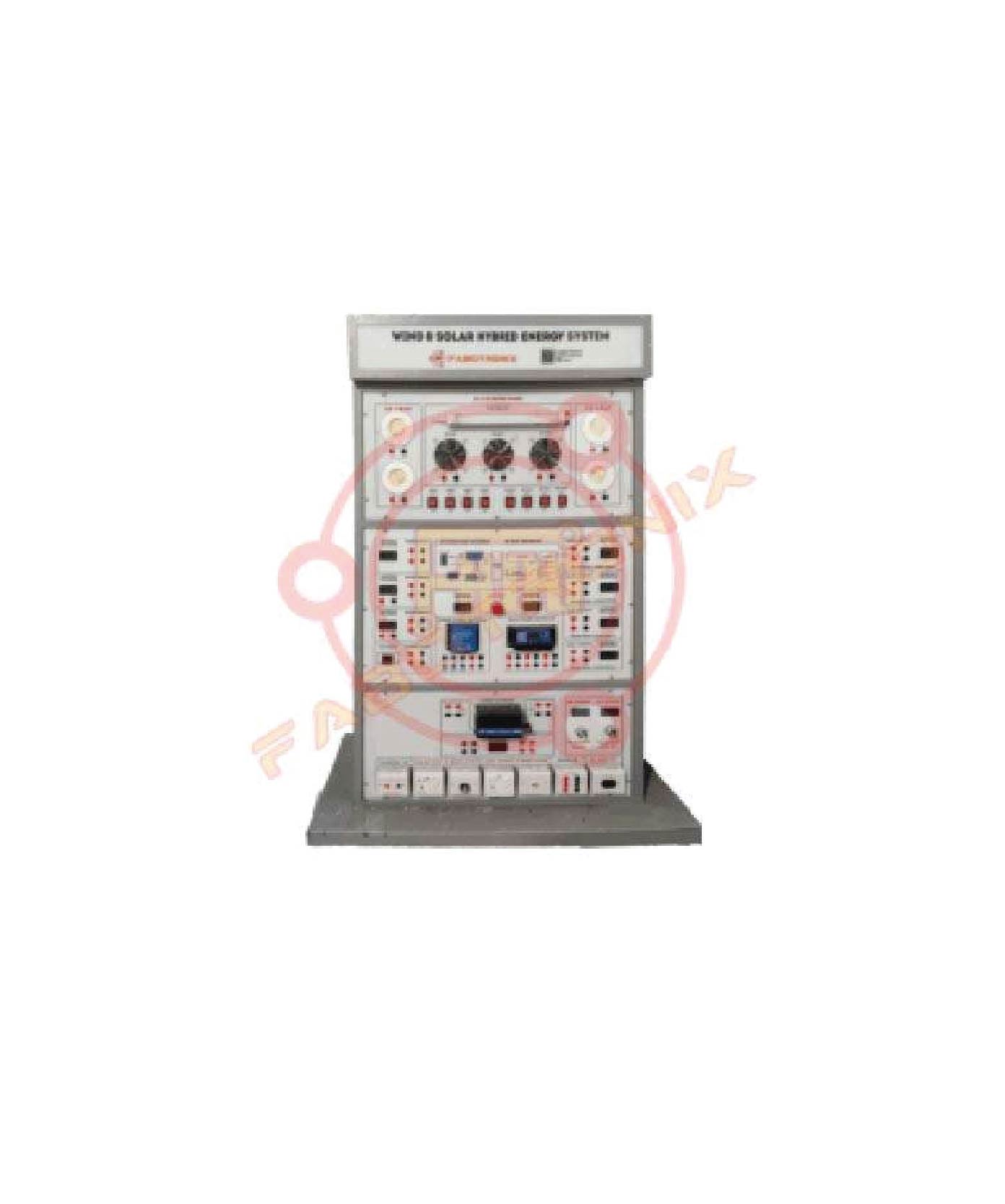

Renewable Energy (Solar and Wind)Trainer with Software

Training Content :

Classification of energy types
About technology that directly converts sunlight into electrical energy
Description of solar power generation training equipment
Learn the theory and measuring practice for the effect of sunlight
(absoledorite effect) using simulation software
Learn the theory of Ohari’s Law & Ammeter/Voltage Meter and measuring
practice Using Simulation Software
Learn the theory and measuring practice for the brightness of light (Illumination intensity)
Learn the theory and measuring practice for the Efficiency of Solar Panels
Learn the theory and measuring practice for solar module characteristics
according to distance
Learn the theory and measuring practice for Solar module characteristics
according to amount of light
Learn the theory and measuring practice for solar module characteristics
according to temperature changes
Learn the theory and measuring practice for solar module
Electrical characteristic according to incident angle
Learn the theory and Characteristics test for series/parallel
connection of solar panel
Learn the theory and Solar power generation experiment
according to shadow area
Learn the theory and Exposure defect protection test & hot spot
Learn the theory and experiment for charging controller
Learn the theory and experiment for Battery Characteristic
Learn the theory and experiment for DC-VC Inverter
Learn the theory and experiment for DC-VC Inverter load
How to use Hardware measuring & PC program
Learn the theory and measuring practice for wind energy

Technical Specification :

Hardware platforms:
Communication port: USB port
AC/DC Voltage/Amphere digital meter
Electric Source Voltage: 100-240VAC 30/60Hz, Power Consumption:
SVA, RS-485: 9600bps
DC Load
Variable resistor (1K [Ohari], 50W]) to test DC Load and DC LED
lamp, DC INPUT: dPI Terminal x2EA, LED Lamp: DC I2V
AC LOAD 1 (AC Motor Module)
AC Power S.W. II/A, Rating: AC 250V/8A, AC 125V/15A
AC Spaciton Motor II/A, Voltage: AC 220V, Frequency: 50/60Hz,
Output: 2.5 ~ 3W, Speed: 38PM,
Double Protection Terminal x 2EA
AC LOAD 2 (AC Lamp Module):
AC Power S.W. IEA,
Rating: AC 250V / 8A, AC 125V / 15A,
Fluorescent Light: II/A, Rating: CA 220V / 50/60Hz,
Power Consumption: 4W,
Lamp Size: 150(W) X16 mm,
Double Protection Terminal x 2EA
Battery: Battery DC 12V, 7A
BATTERY CHARGER SMPS:
Input Voltage: AC85~264V,
Output Voltage: 15~18V (Variation through VR),
Output Current: 1A
Charging Controller:
Input Voltage: DC 15V-20V,
Block Over discharge: 11.1V,
Block Overcharge: 13.8V,
Variation of over-discharged/overcharged voltage levels,
Charging Circuit T-P: 4Point,
Input Terminal: 4PI 2EA,
BATTERY Terminal: 4PI 2EA, LOAD OUTPUT: 4PI 2EA
DC/AC Inverter:
DC DEPUT: 4PI Terminal 2EA
INVERTER: Input Voltage: 10~12V,
Output Voltage: AC225V, 50/60Hz, Maximum Output: 200W,
Reverse Voltage Protection Diode: IN54b4, Double Protection
Terminal x 2EA, Inverter Circuit T-P: 5EA
Monitoring system: Power generation status, Voltage in battery,
Output Voltage
Photovoltaic module:
Solar Cell: 5W, 18.5V, 0.3A x 2 EA
(Upward/downward 90° angle control,
Attachment of attached/solesterhabe profile levers)
Output Terminal: 4 EA
Lamp: Halogen Lamp 220V / 500W
Brightness Control: Diameter VR (Angle Control)
AC Input: 220V
Base: AL Profile (Cursor Control 0~270 cm)
Wind module:
25W Generator & Motor 1 set
Black power speed control system
Operation of charge controller and stand-alone inverter due to
wind turbine power generation

Software:
Simulator for theory learning of PV & PV curve graph of solar
module
Solar Power Generation System, GUI Software & Serial Driver:
Realtime data is implemented as a graph and can be saved at the
same time.
Serial power setting menu, Pregeneration, VTC ON/OFF menu,
Stop & Start menu, Data Interval menu, Sampling Time menu,
Time Chart, IV graph, PV graph, Raw data table (date & time, DC
voltage, DC Current, AC voltage, AC current, DC power).
Data can be saved as a CVS file and can be saved in thread, Graph
review, function by recalling saved data, Live Data menu (DC
voltageV1, DC currentIanV1, AC voltageV1, AC currentImAV1,
DC Power menu (Real timeVN), one day[Wh], one month[Wh],
one year[Wh])
Machine Holder:
Quantity: 2
MATERIAL:
Compressed Wood panels with laminated melamine surface
Dimension(maximum): 2440 X 370 X 750 mm
Top surface around: 16 mm laminated board 16 mm top visual
with 1mm edging
Color: Black, White, Wooden and etc
Surface scratch proof
Basic:
Cold rolled Mild Steel tubular frame or Made with heavy-duty
mild steel
PVC leg stopper for floor protection
Paint: Mild steel part protected with powder coating heat paint
PVC edge landed with hot melt glue to protect moisture pairing
Phosphatized and Oven baked powder paint finish for anti-rest and
longevity
Anti-insects chemicals added to make the board termite-proof

Accessories:

Single-phase power cord
4mm Banana Socket-1Set
User Manual

Others:

Brand: FaboTronix
Country of Origin: China, taiwan, japan.
Manufacturing: Assemble in Bangladesh
